Electronic Climate Control

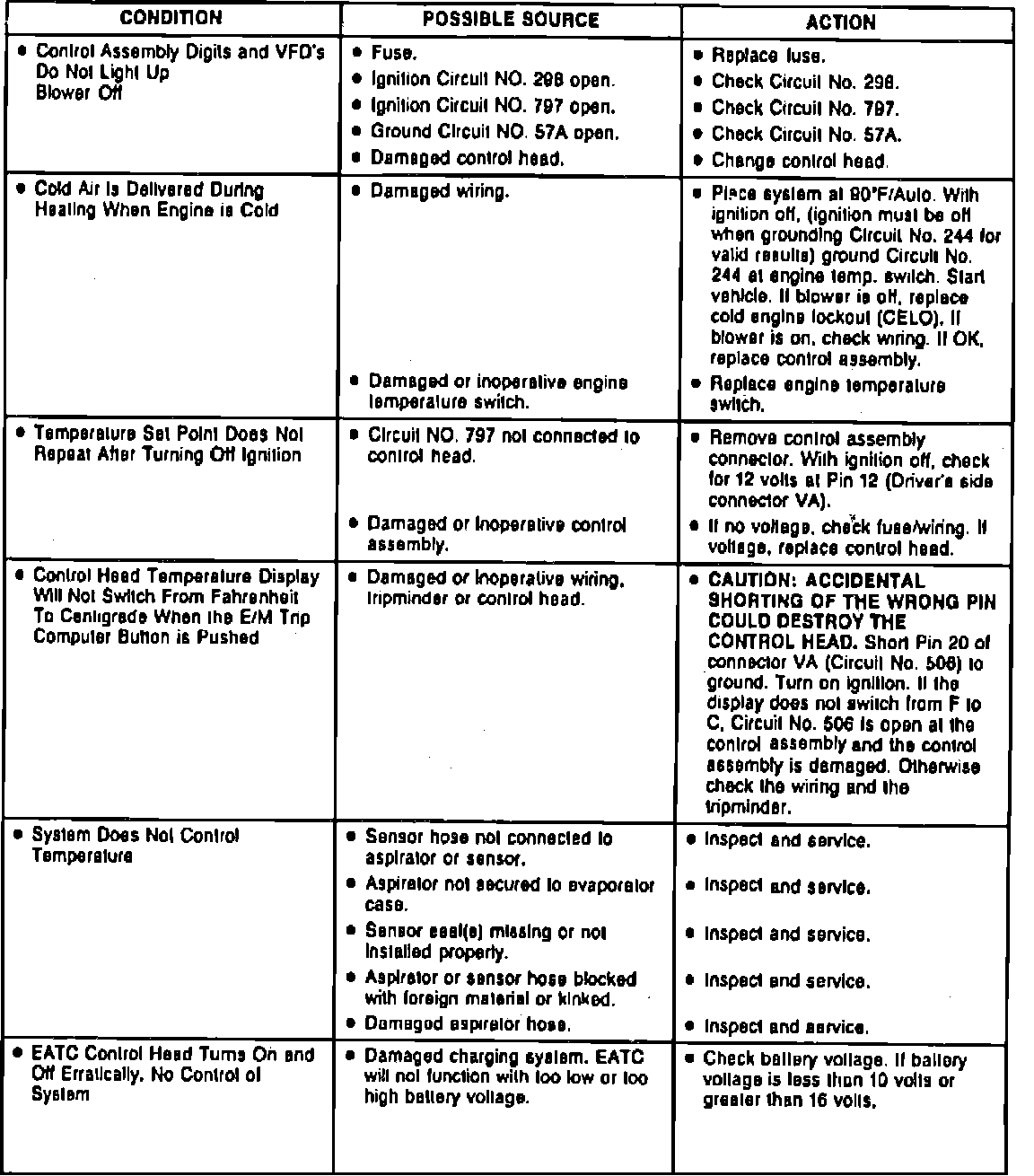

Fig. 5 Diagnosis, No Error Codes Indicated:

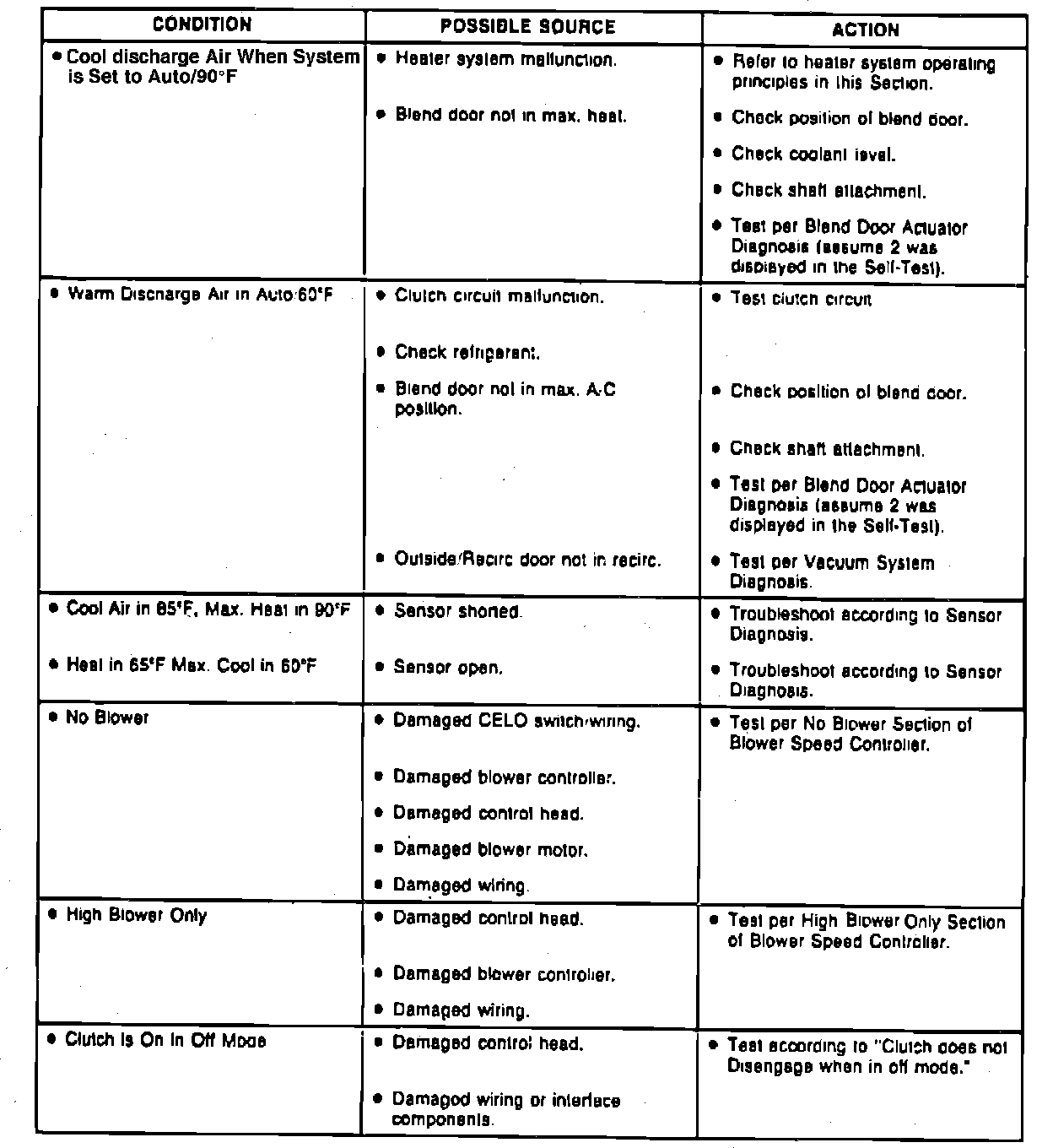

Fig. 5 Diagnosis, No Error Codes Indicated:
