Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning >> Electronic Climate Control

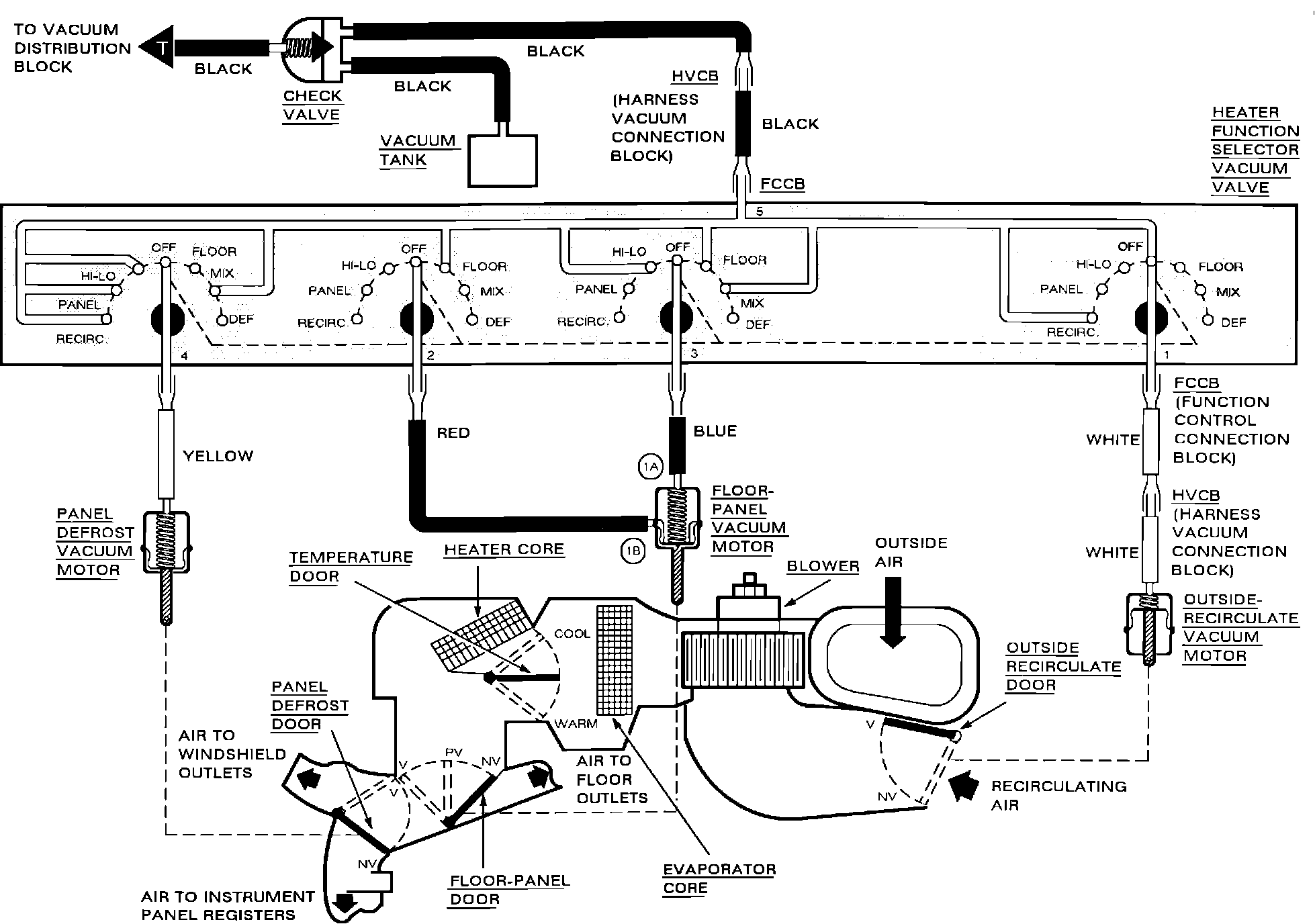

Electronic Climate Control

Automatic Temperature Control:
