Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Bearing >> Rear - With Disc Brakes

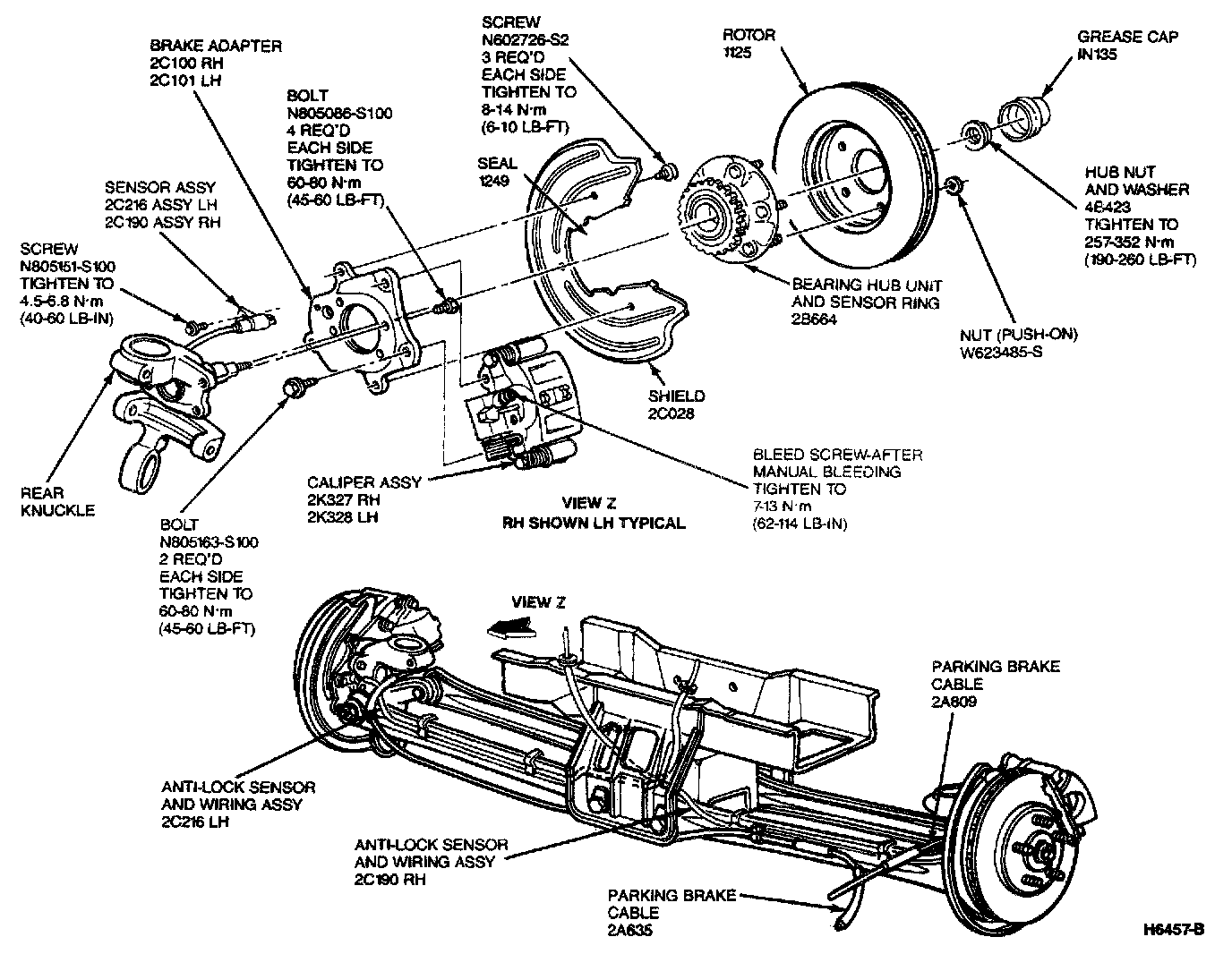

Rear - With Disc Brakes

ABS Disc Brakes:
