Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Power Distribution >> Charge System/Power Distribution & Fusible Links >> Charging System >> Without Heated Windshield

Without Heated Windshield

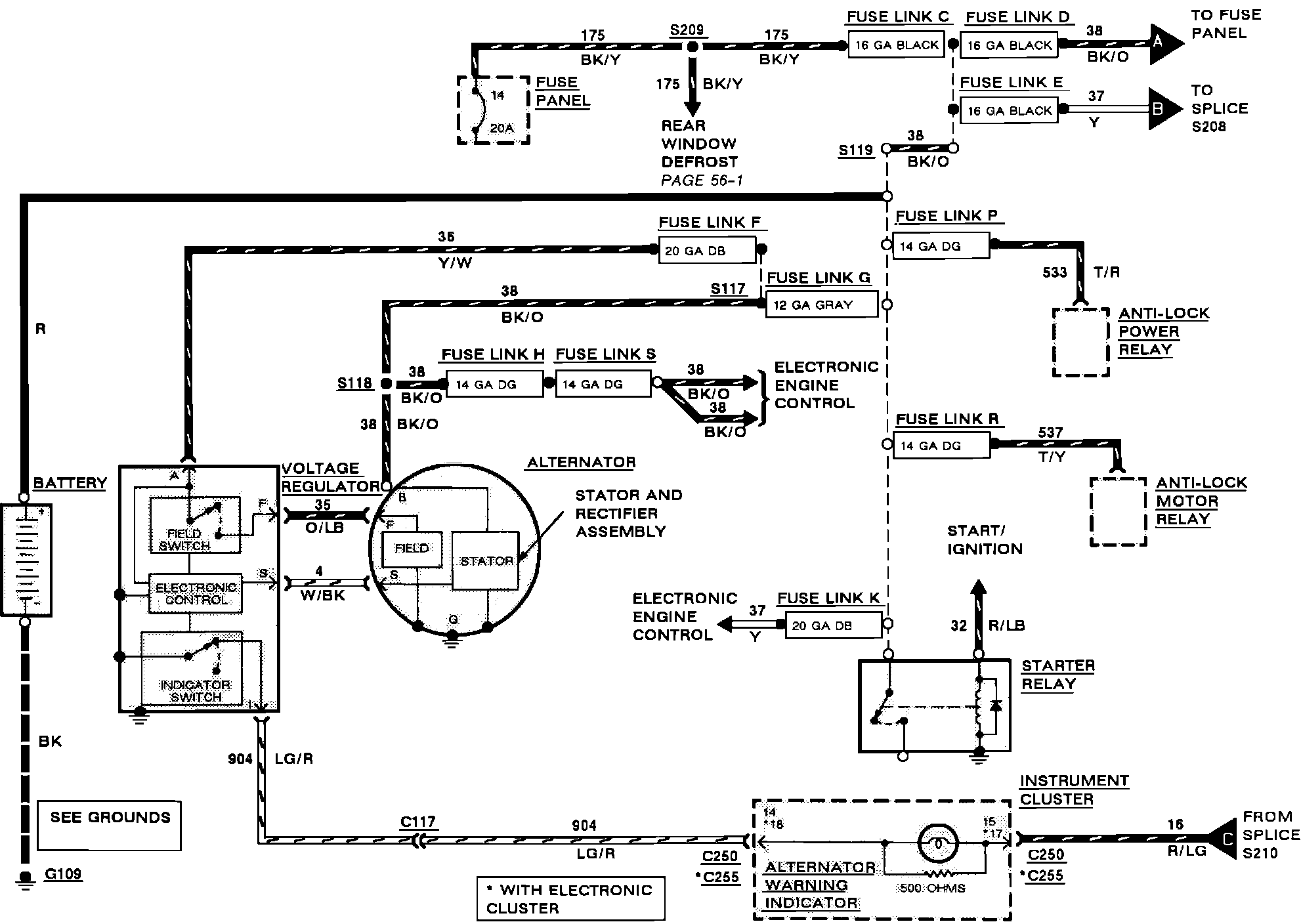

Charging System W/O Heated Windshield:
