Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram >> Schematics Used With Tests

Schematics Used With Tests

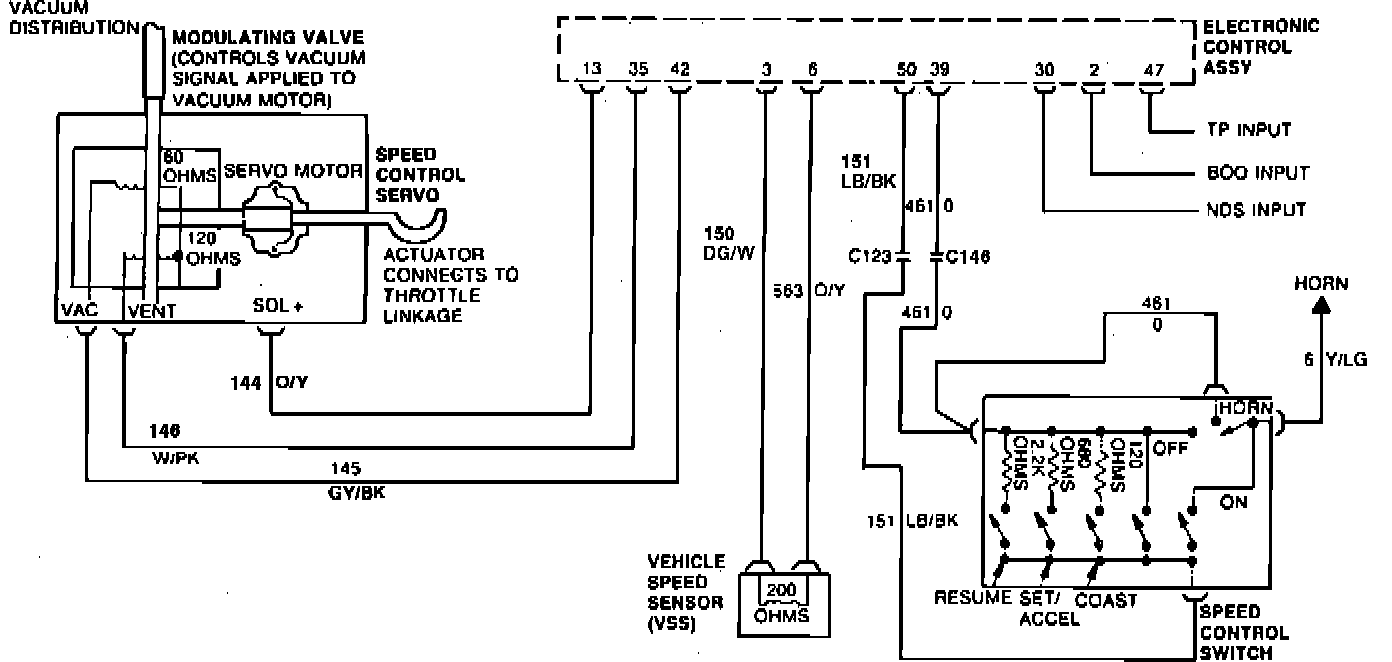

Fig. 39 Pinpoint Test Wiring Diagram. Sable, Taurus & Continental:
