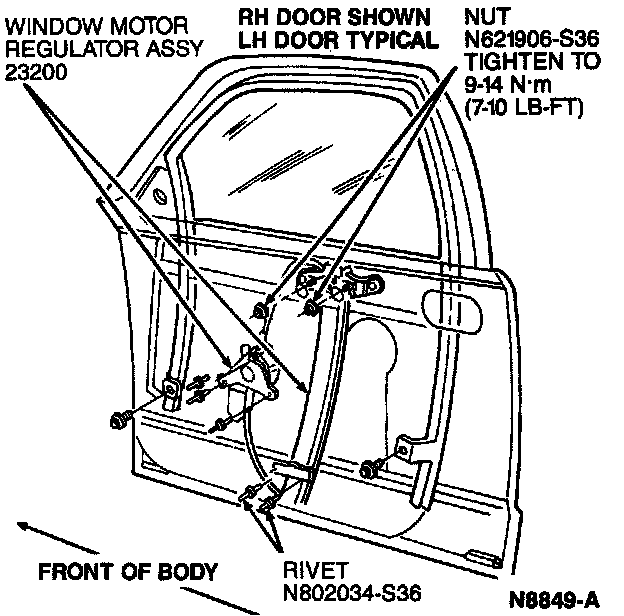

Front Door Window Motor

Removal

1. Remove door trim panel and watershield. Doors

2. Disconnect battery ground cable. Disconnect motor wires at multiple connector.

3. Remove motor retaining screws using a Torx(r) Drive Bit Set D79P-2100-T or equivalent and separate motor from bracket and cable drum housing.

4. Remove motor from inside door.


Installation

1. Position motor and drive to cable drum housing and motor mounting bracket. Install three motor screws. Tighten to 5.6-6.8 N-m (50-60 lb-in).

2. Connect power window motor wiring and battery ground cable.

3. Check window operation. Install watershield and door trim panel. Doors
