A Quick Test
>>
C Initialize System
C Initialize System

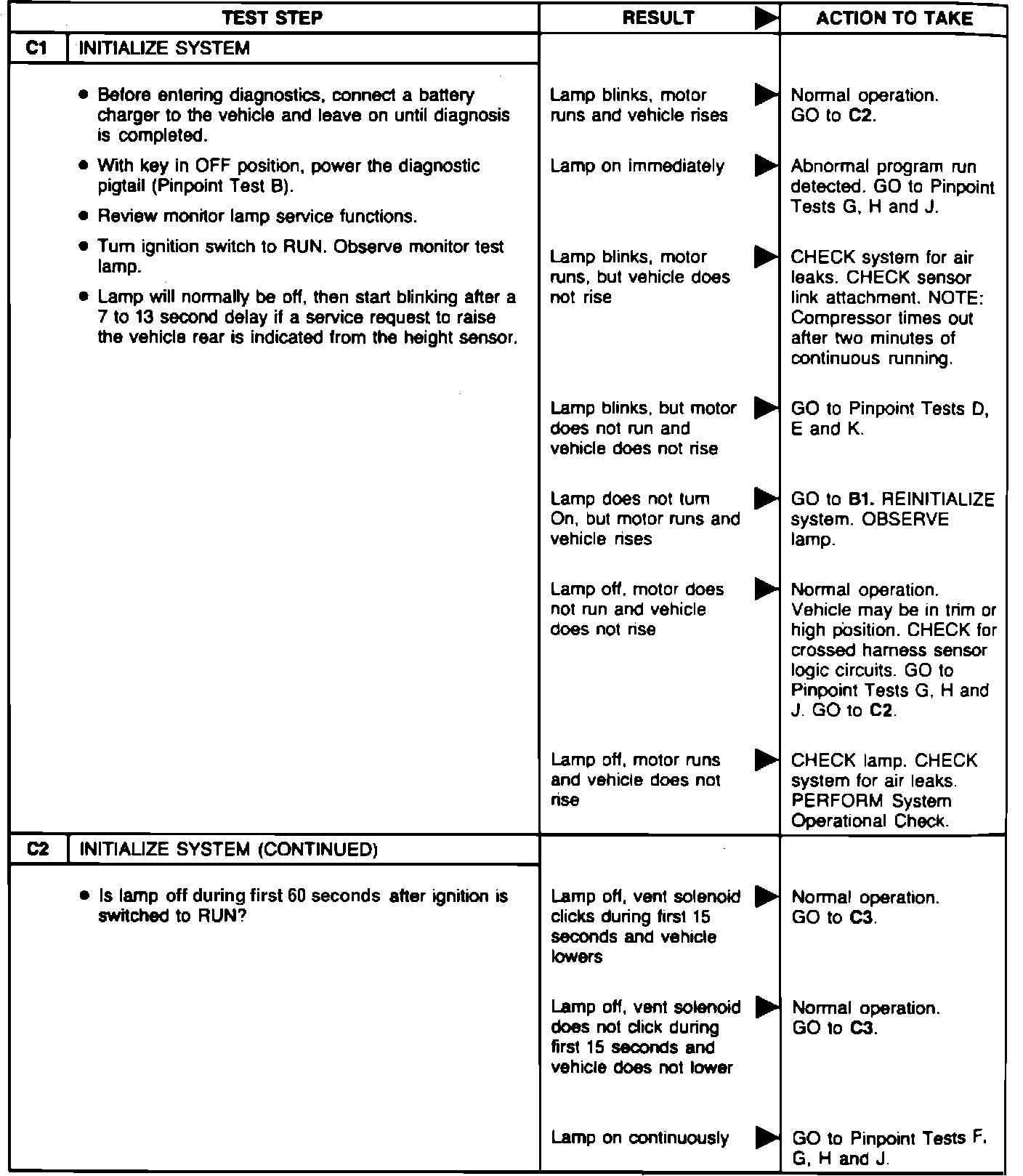

Fig. 8 Quick Test Chart C (Part 1 Of 2), Initialize System:

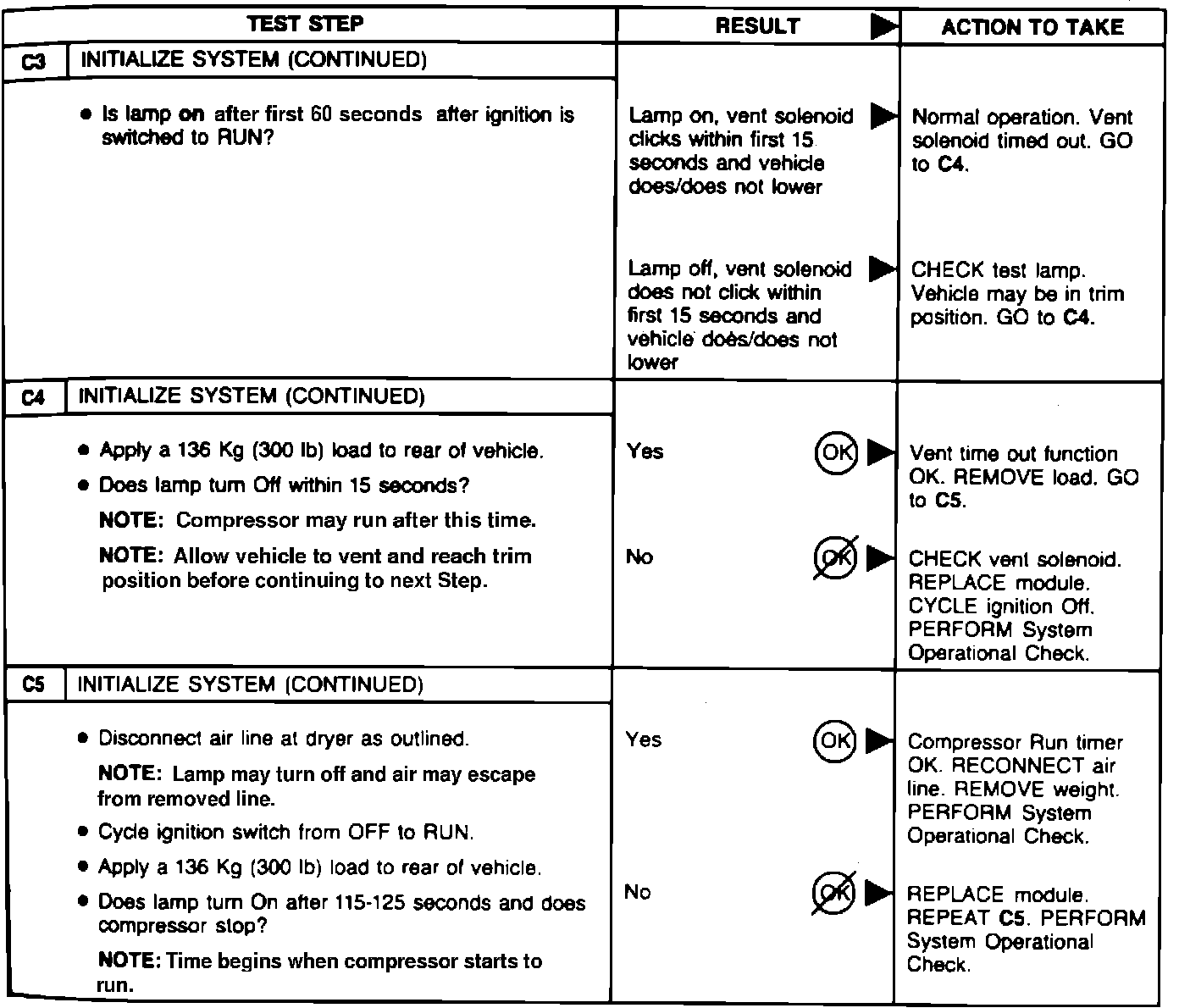

Fig. 8 Quick Test Chart C (Part 2 Of 2), Initialize System:
