Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Fuses 18,4,8 & Main Light Switch - Less Autolamps

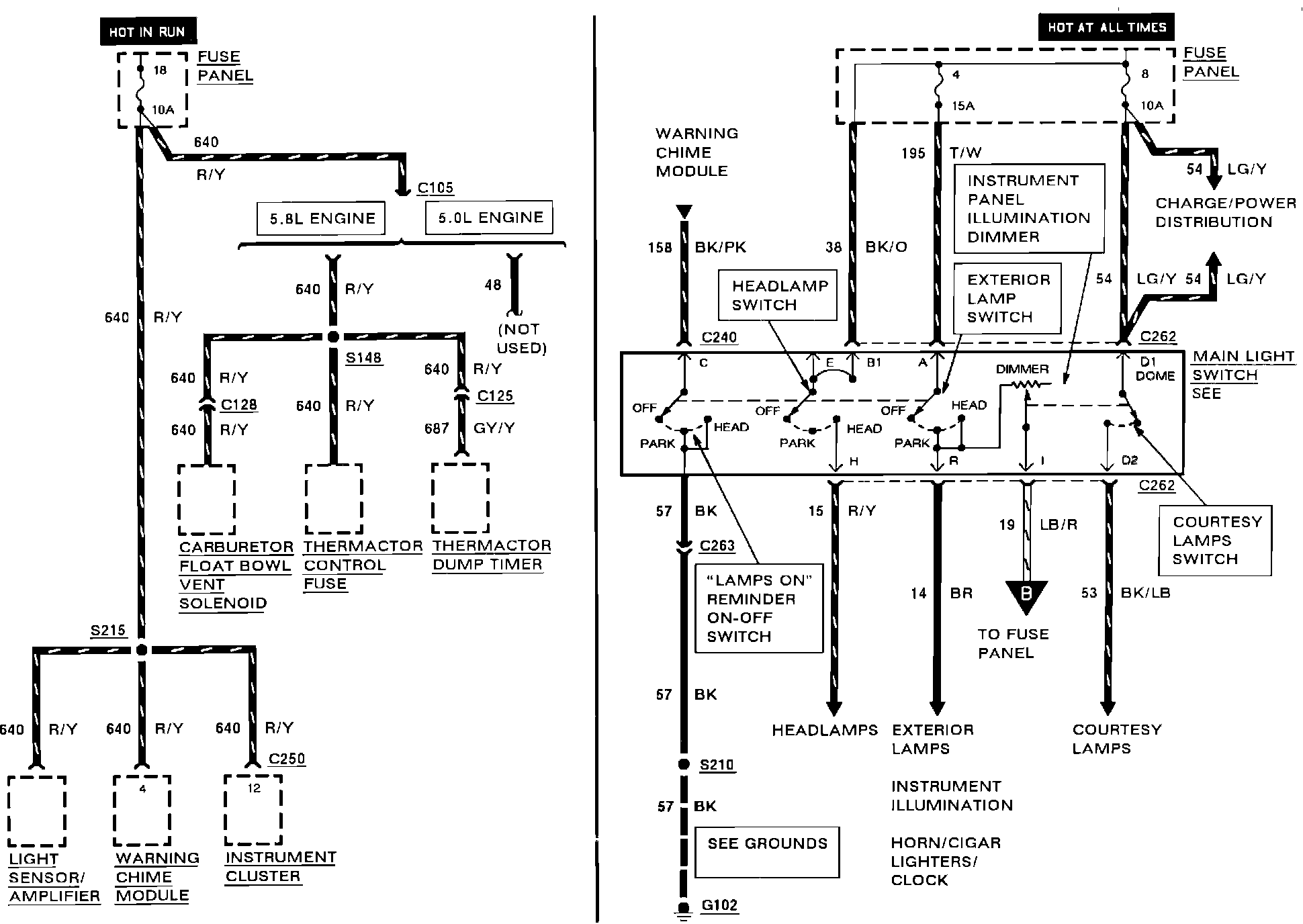

Fuses 18,4,8 & Main Light Switch - Less Autolamps

Power Distribution - Less Autolamps:
