With Heated Windshield

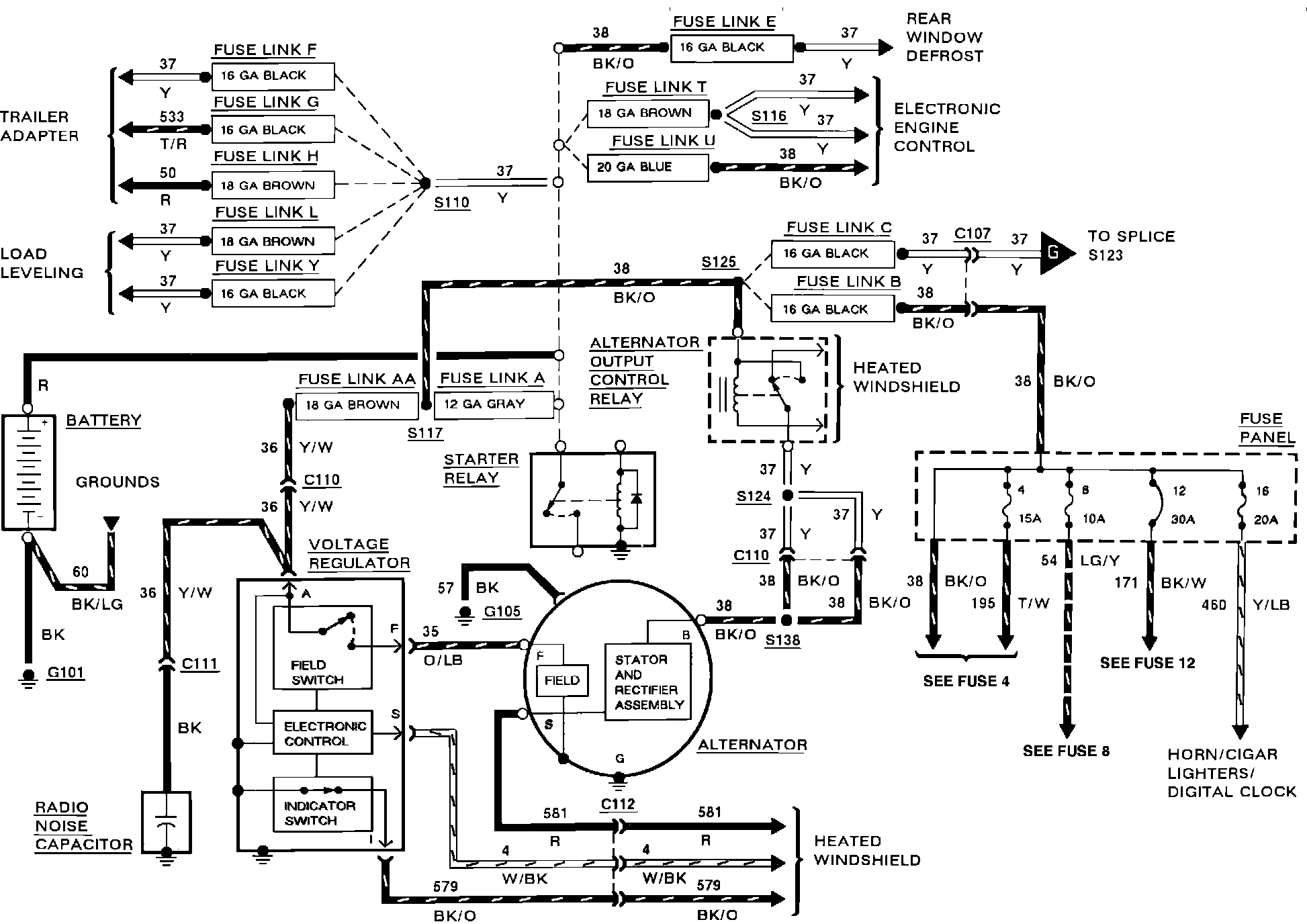

Power Distribution - With Heated Windshield:



Power Distribution With Heated Windshield And Police Option:
