Windshield Washer Switch: Testing and Inspection
Wiper Switch:

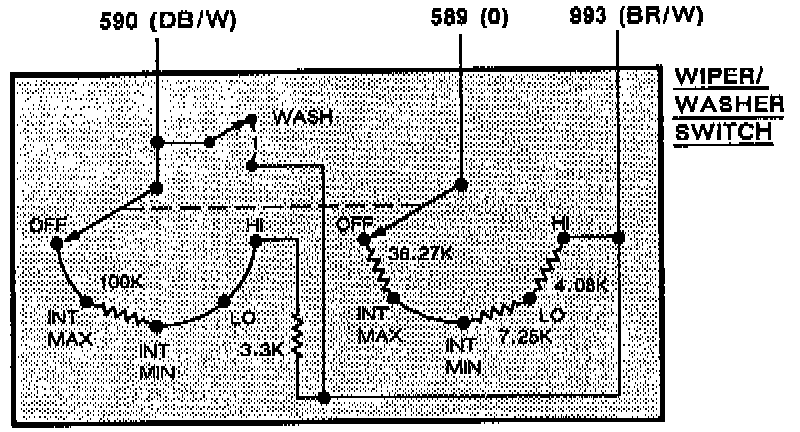

Switch Schematic
Wiper/Washer Switch:

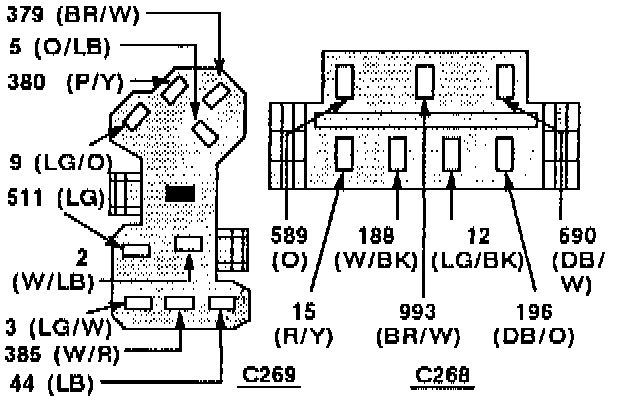

Terminal Identification
Wiper Switch:
Switch Test
