Passenger Doors

Removal and Installation

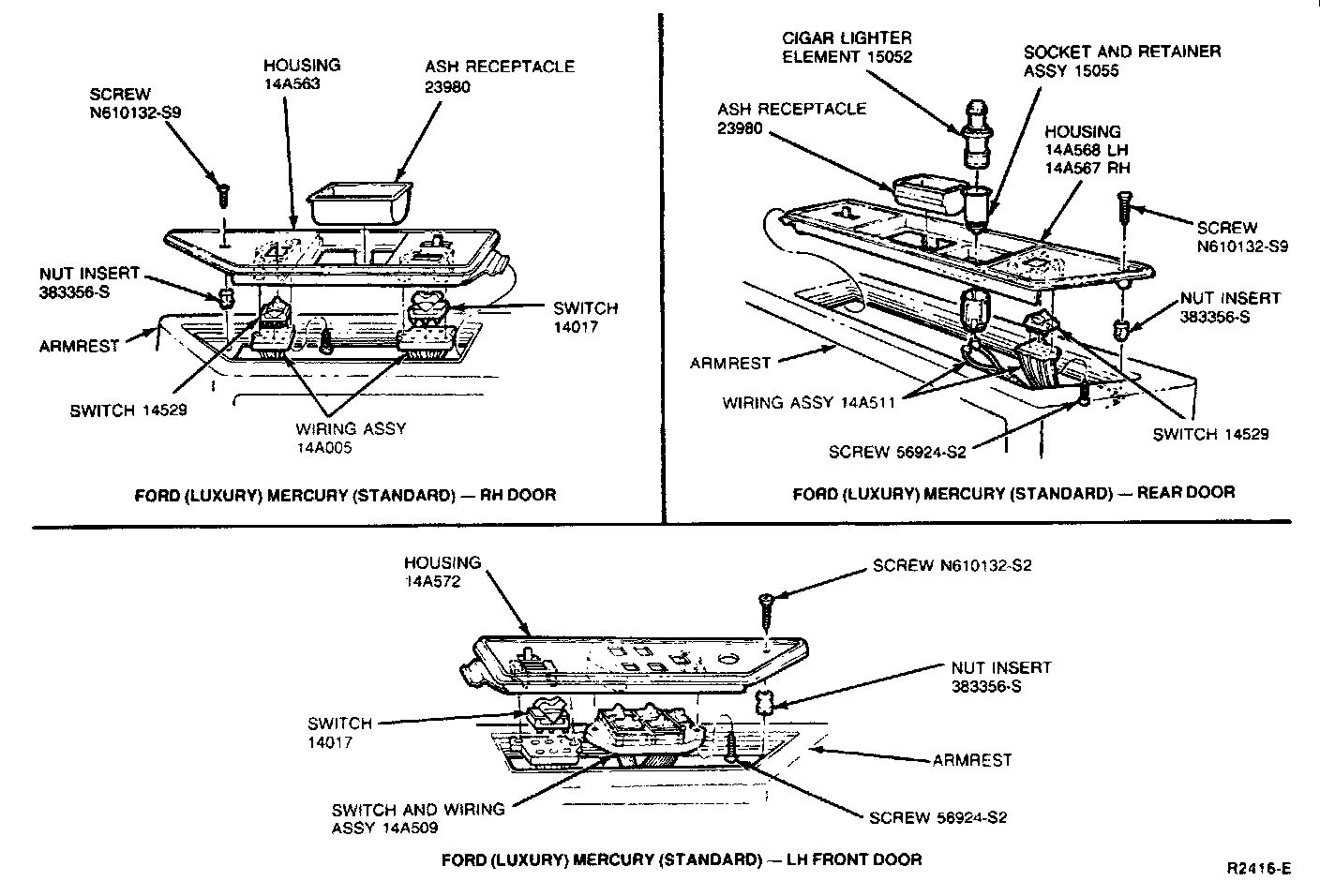

1. Remove the front retaining screw and gently pry up the front portion of the switch housing.

2. Unhook the rear edge of the housing and remove the switch housing from the armrest cavity.

3. Remove the two screws retaining the connector to the switch housing.

4. Carefully pry the switch from the connector with a small screwdriver. Take care not to damage the electrical contact pins.

5. To install, reverse Steps 1 through 4.
