Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Electrical Diagrams >> Part 1 of 3

Part 1 of 3

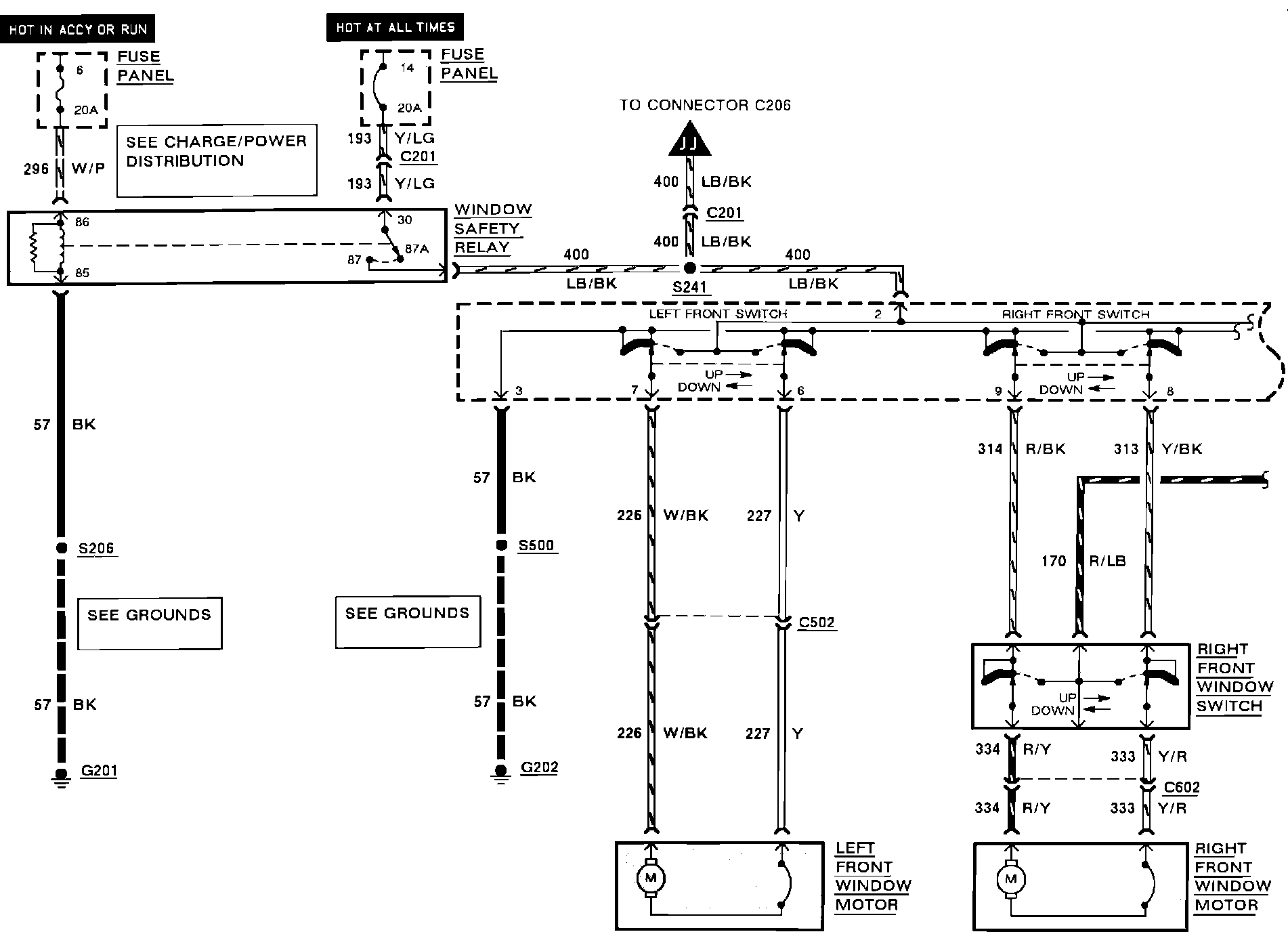

Power Windows:
