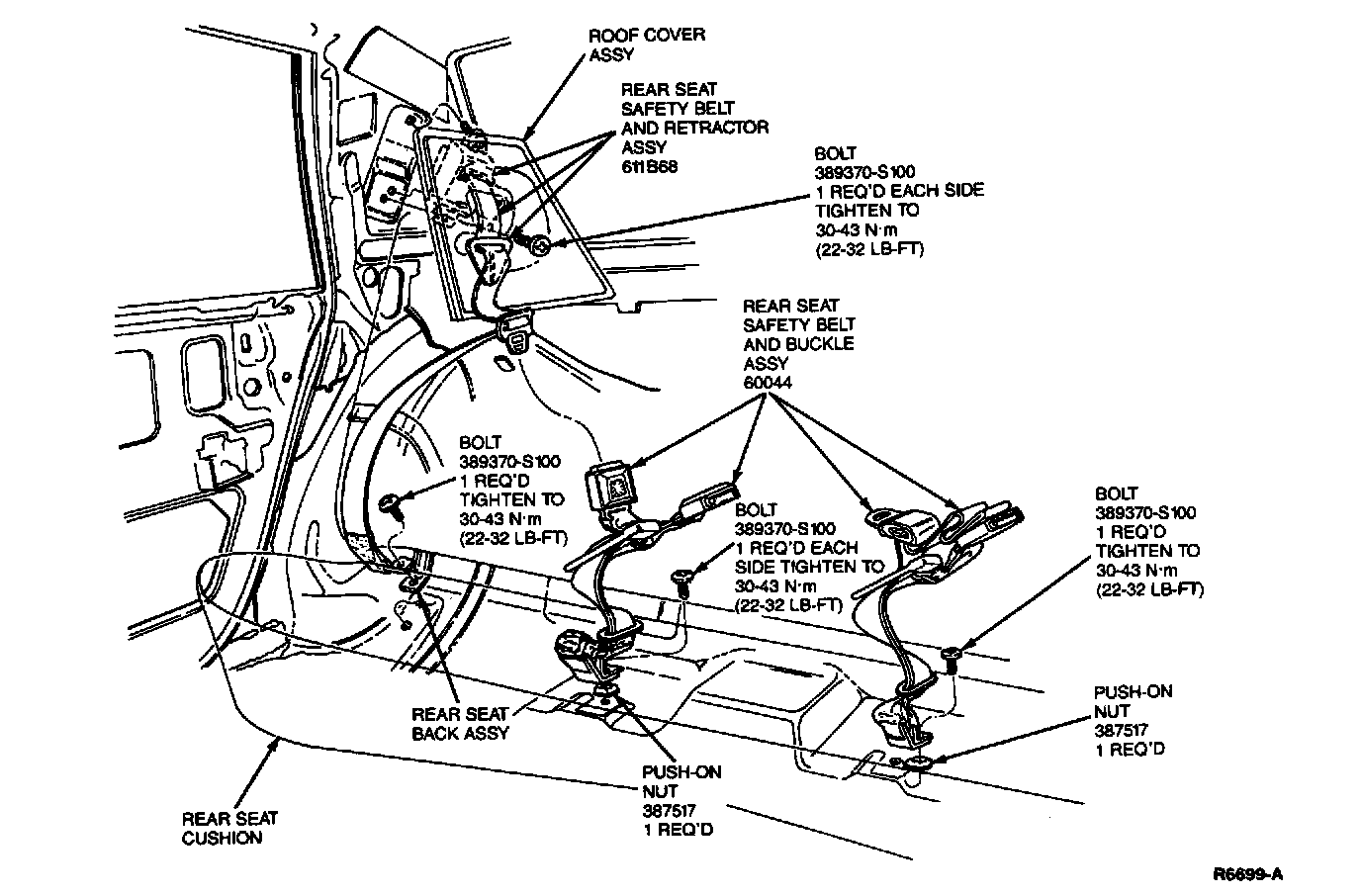

Rear Safety Belt Retractor and Harness Assembly

Removal and Installation
1. Raise rear seat cushion to gain access to buckle end attachments to the floorpan at the tunnel.
2. Remove buckle end retaining nuts.
3. Remove rear seat cushion to access safety belt anchor attachment to the floorpan.
4. Remove safety belt anchor retaining bolt.
5. Remove roof side rear trim panel assembly.
6. Remove belt opening grommet and pull belt with slip tongue through belt opening in the panel.
7. Remove retractor assembly retaining bolts.
8. To install, reverse Steps 1 through 7. Tighten all retaining nuts and bolts to 30-43 Nm (22-32 lb-ft).
