Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

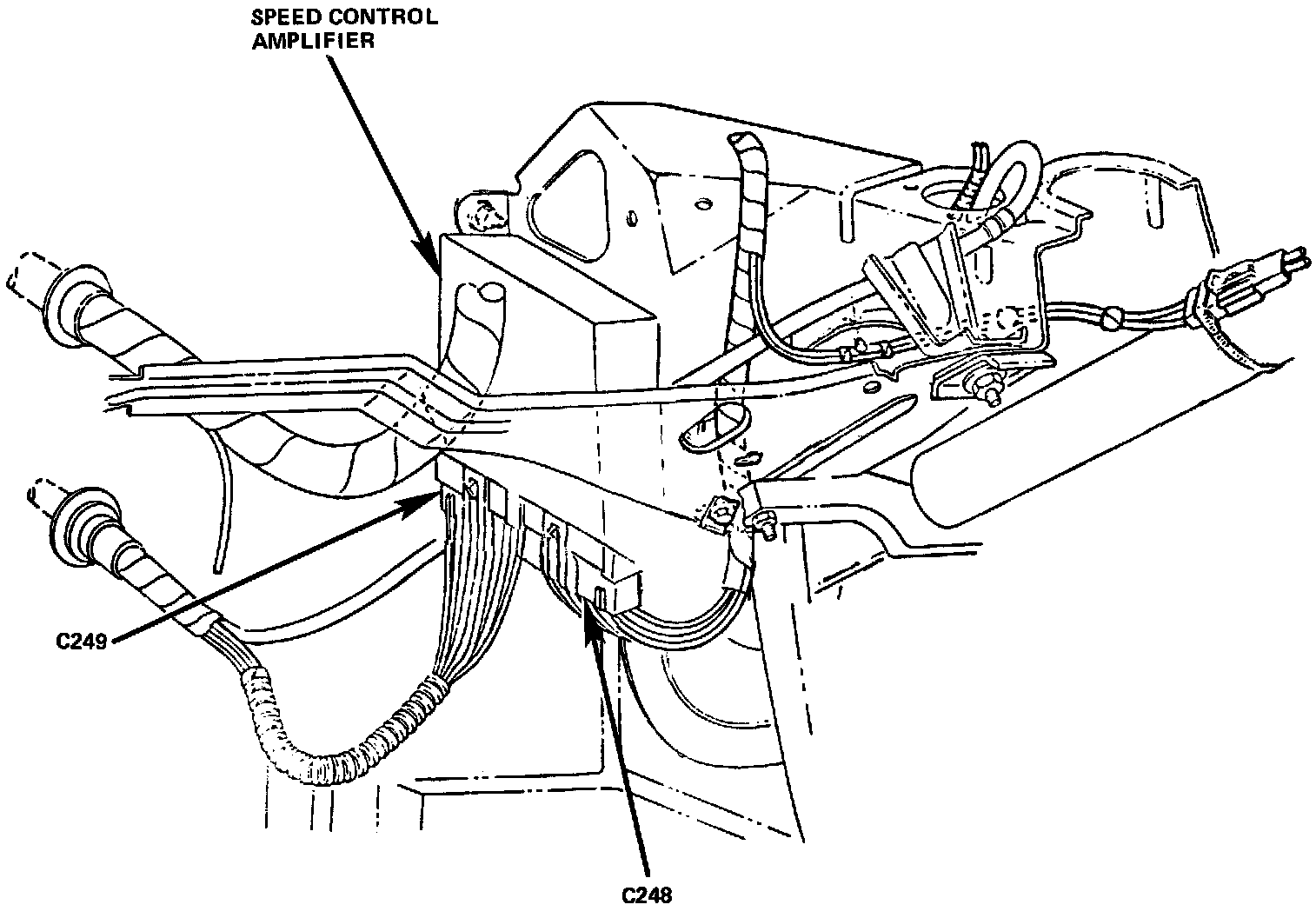

The Cruise Control Module or Speed Control Amplifier is located Behind the Instrument Panel, and Left of the Steering Column.
