Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Ignition Timing >> Testing and Inspection >> Steps 16 Through 17

Steps 16 Through 17

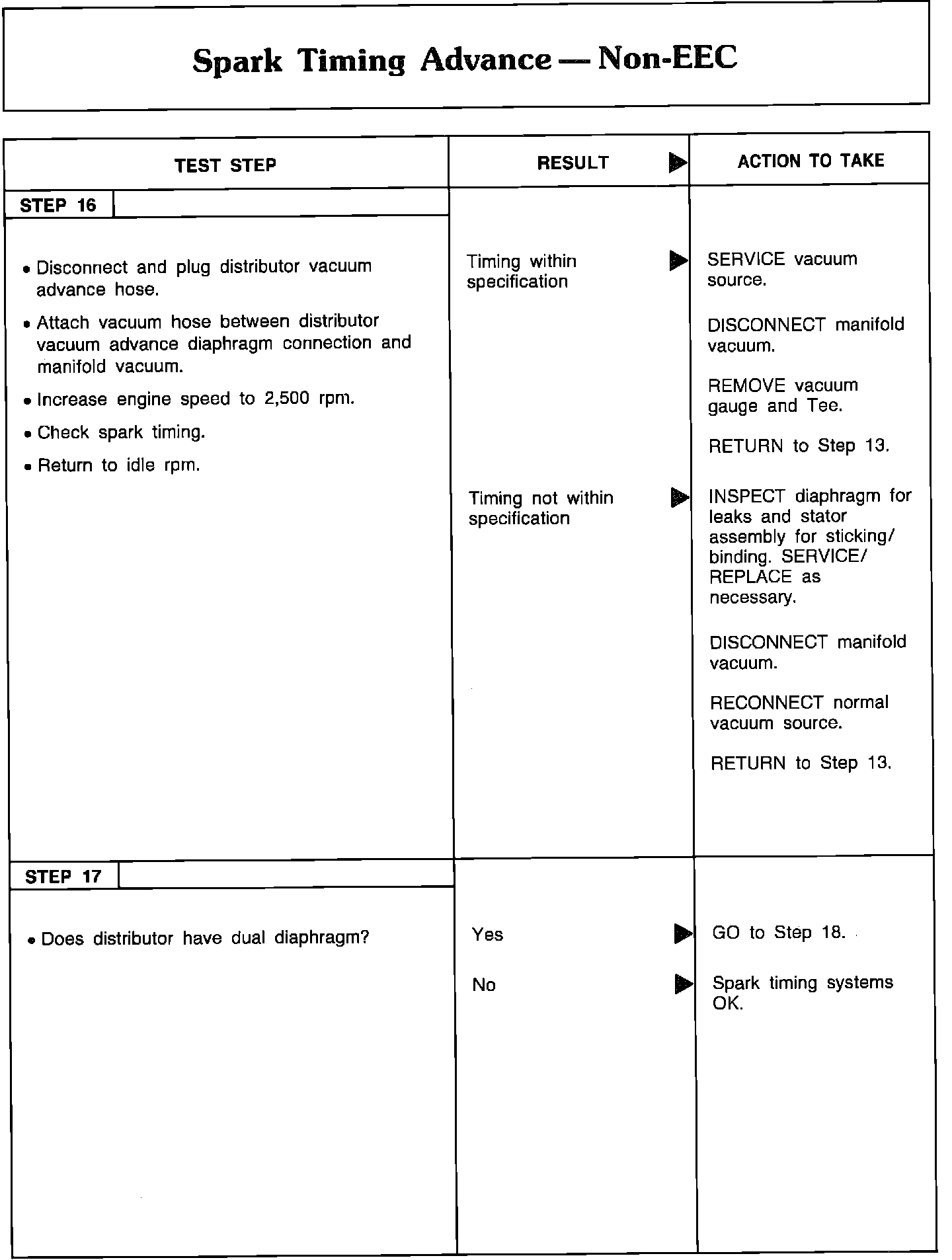

Spark Timing, Steps 16 thru 17:
