Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Primary Circuit Tests >> Test 9 - Ignition Coil Secondary Resistance

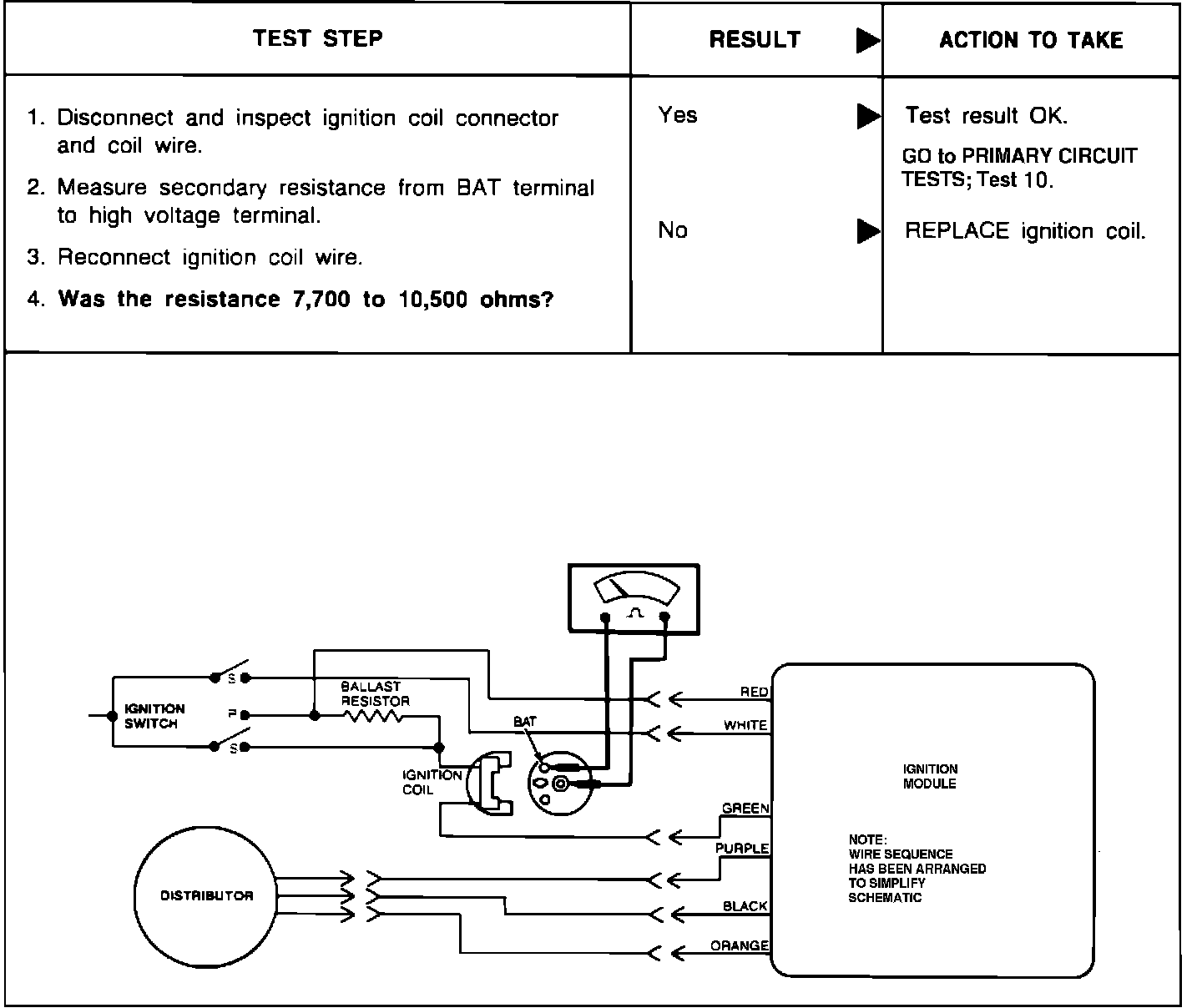

Test 9 - Ignition Coil Secondary Resistance

Ignition Coil Secondary Resistance - Test 9.:
