Test 7 - Distributor Stator Assembly and Wiring Harness
Test 7 - Distributor Stator Assembly and Wiring Harness

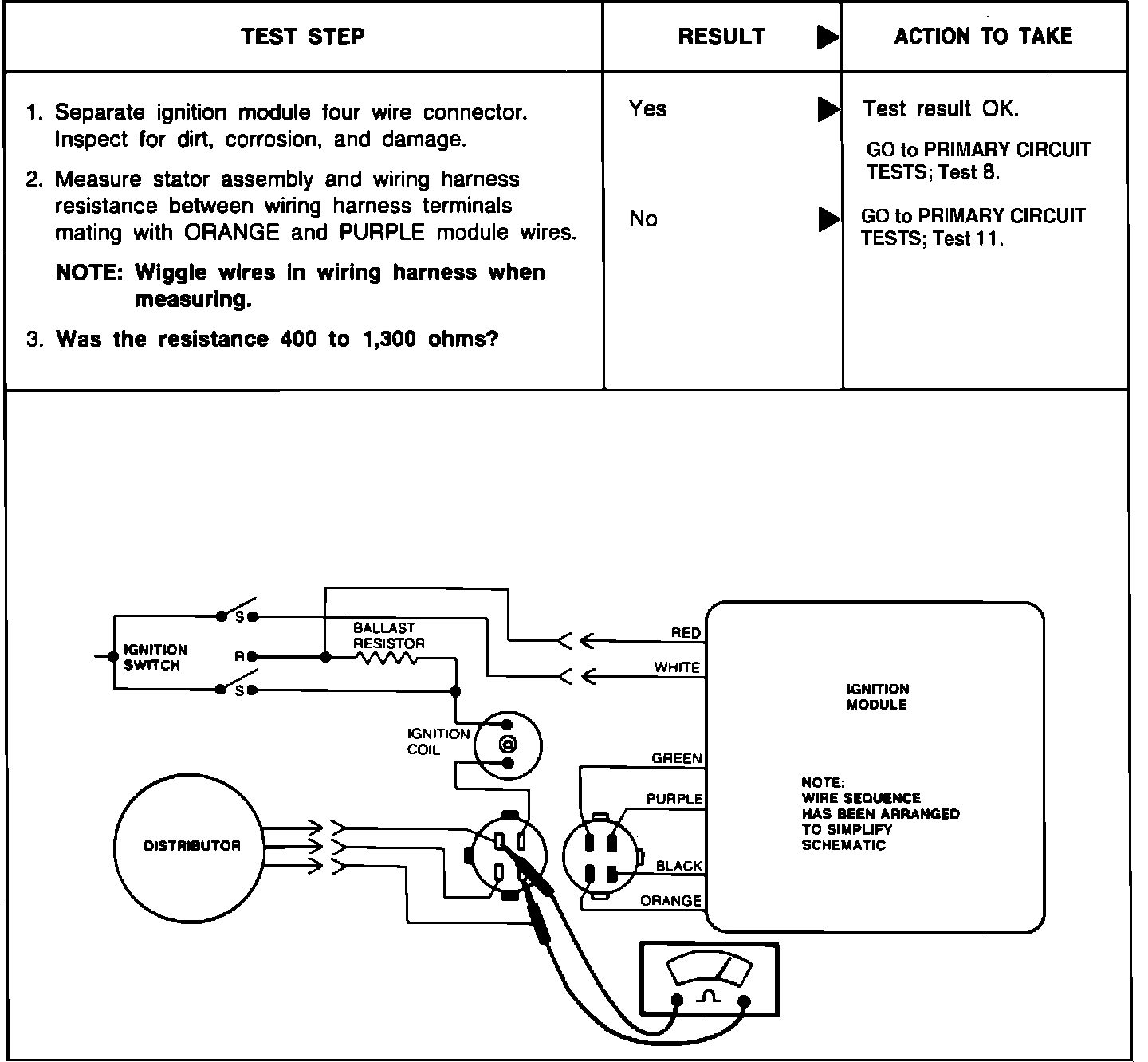

Distributor Stator Assembly And Wiring Harness - Test 7.:
