Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Primary Circuit Tests >> Test 15 - Distributor Ground Circuit Continuity

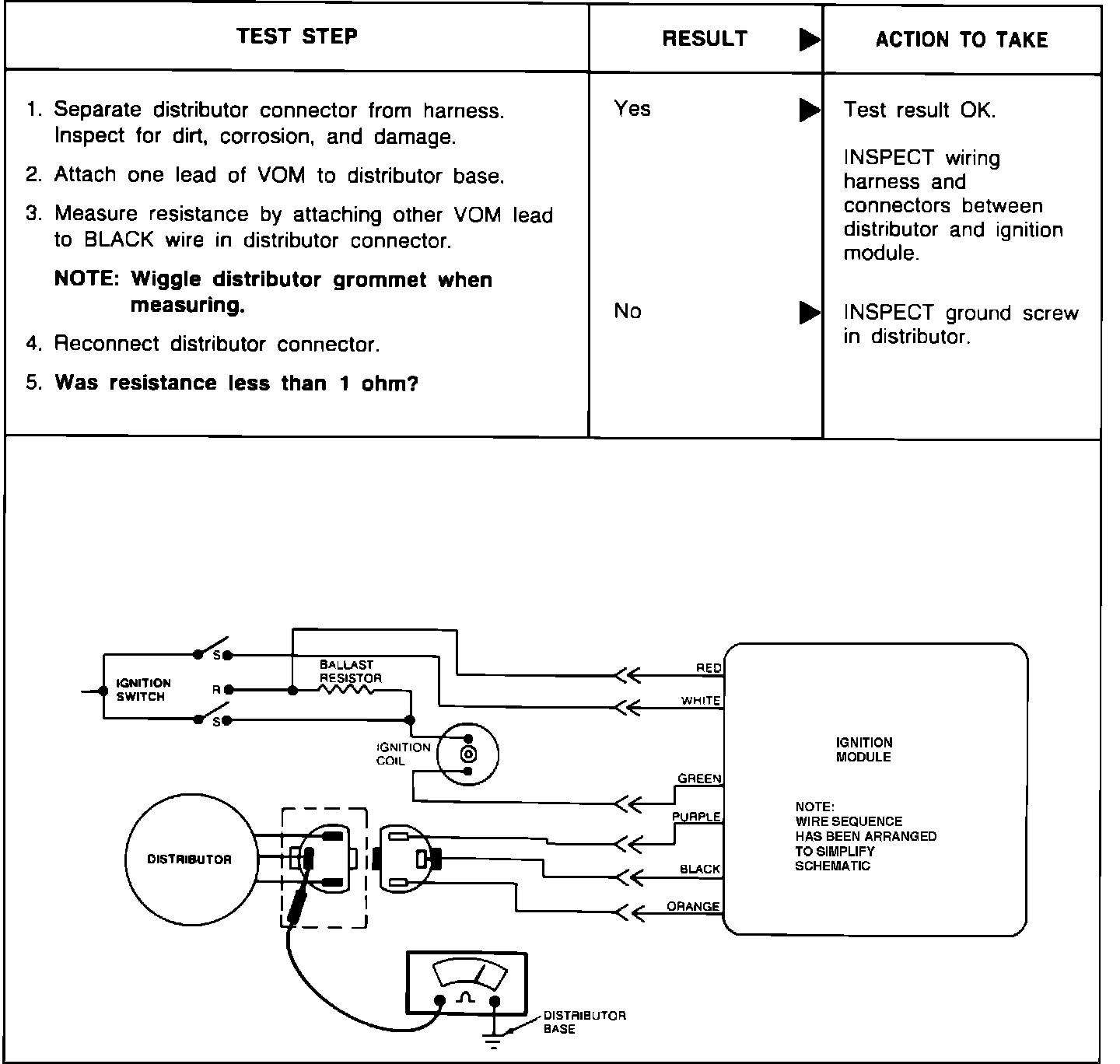

Test 15 - Distributor Ground Circuit Continuity

Distributor Ground Circuit Continuity - Test 15.:
