Test 13 - Primary Circuit Continuity
Test 13 - Primary Circuit Continuity

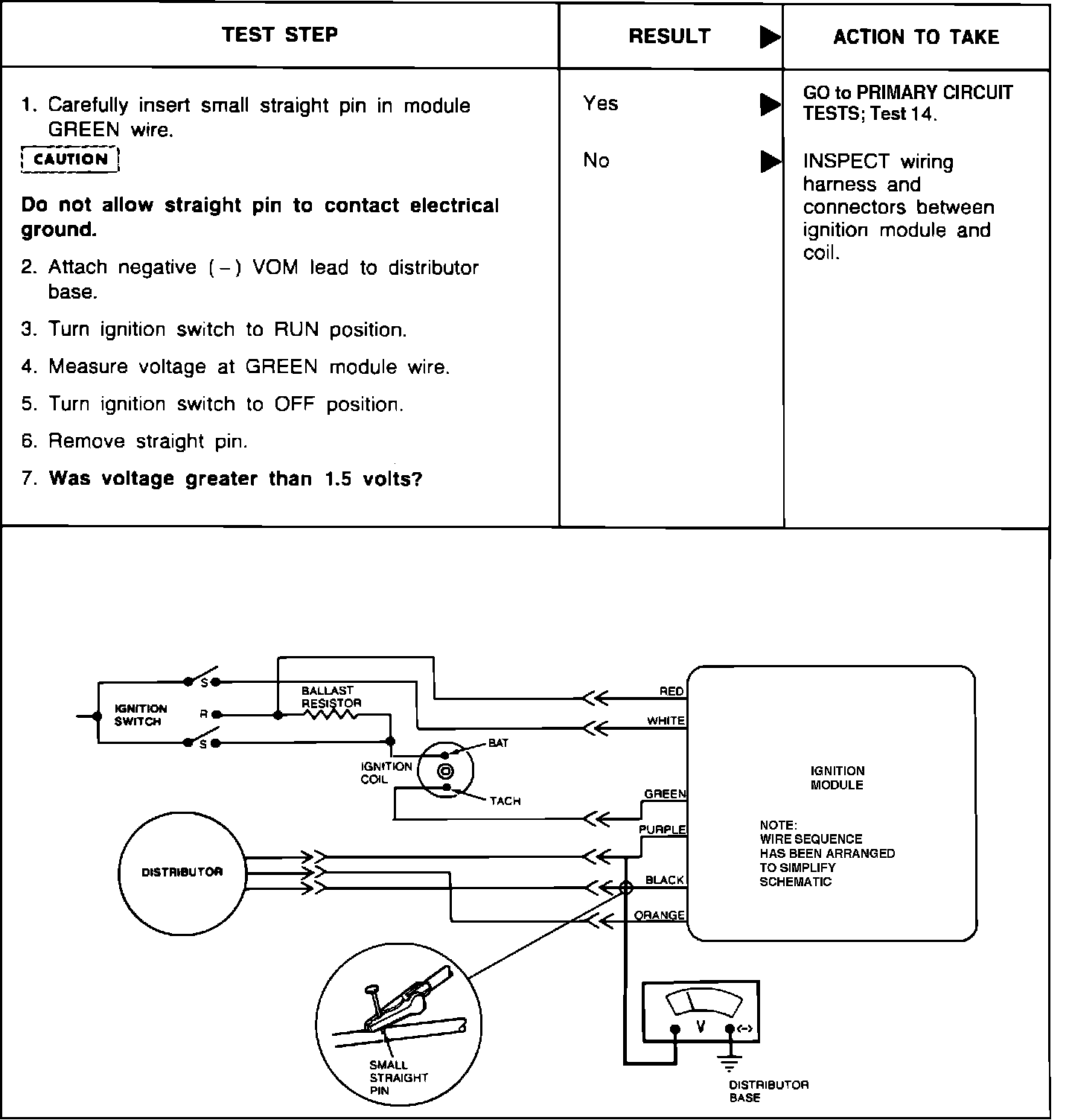

Primary Circuit Continuity - Test 13.:
