Test 12 - Ignition Coil Primary Resistance
Test 12 - Ignition Coil Primary Resistance

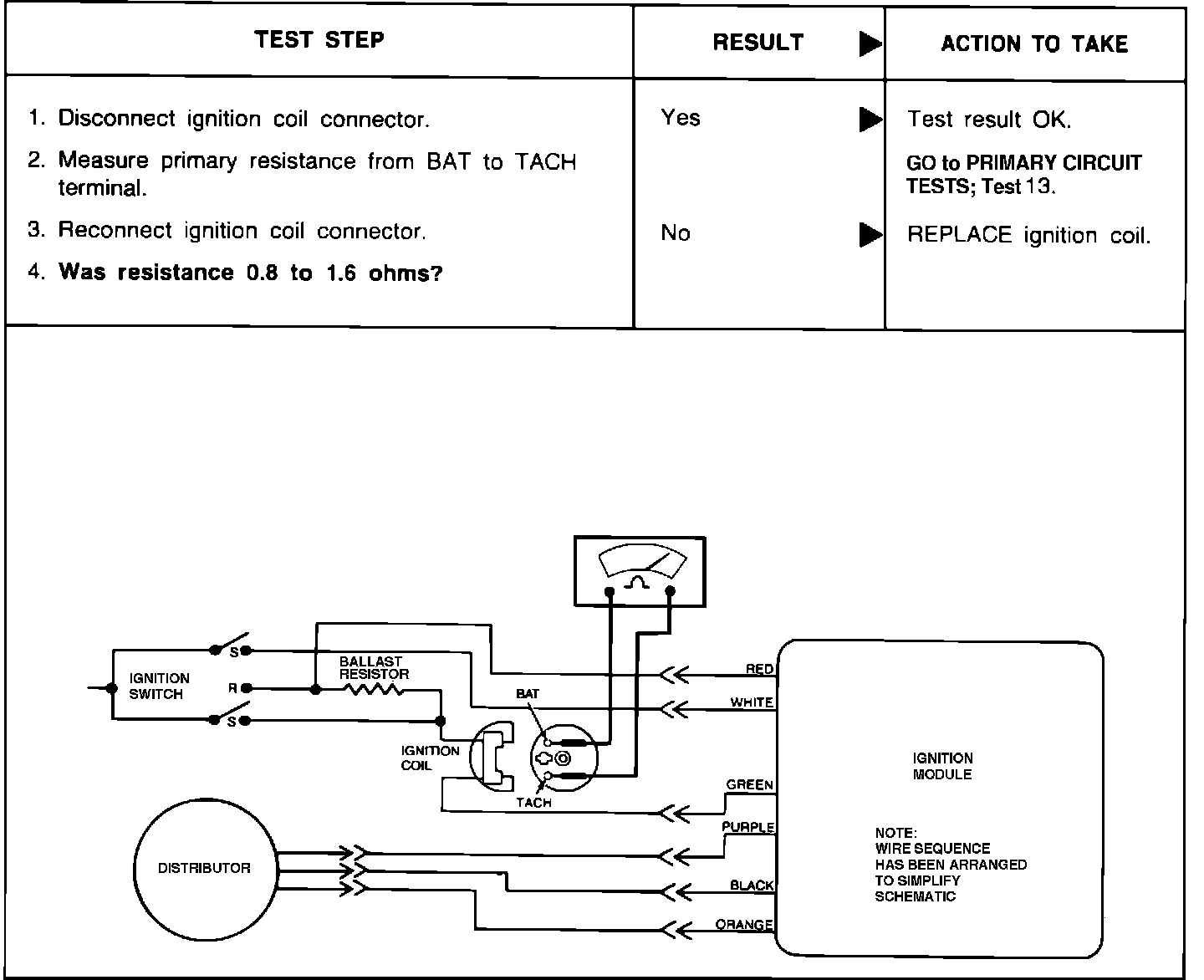

Ignition Coil Primary Resistance - Test 12.:
