Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Primary Circuit Tests >> Test 11 - Distributor Stator Assembly

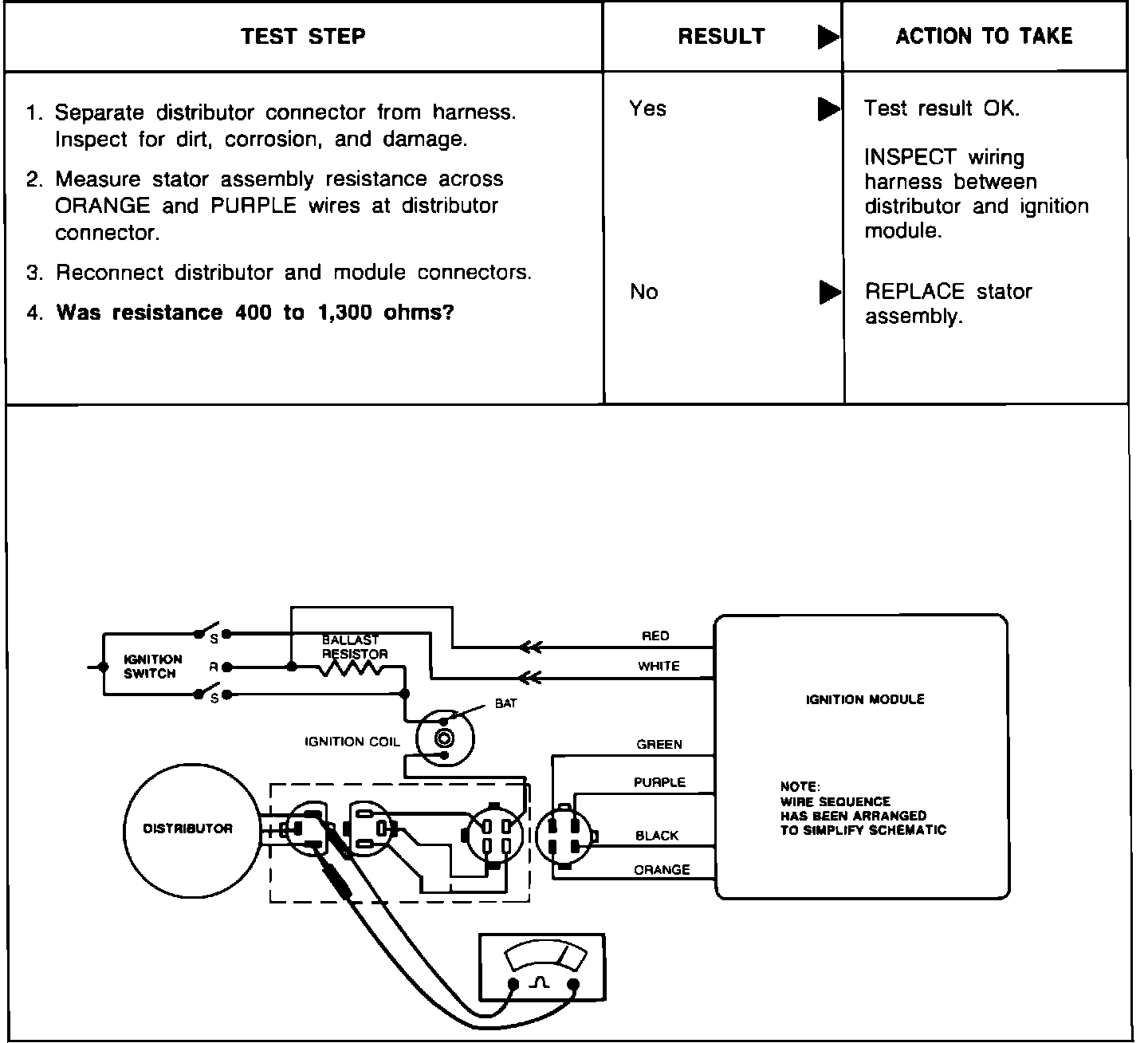

Test 11 - Distributor Stator Assembly

Distributor Stator Assembly - Test 11.:
