Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Primary Circuit Tests >> Test 10 - Module to Coil Wire

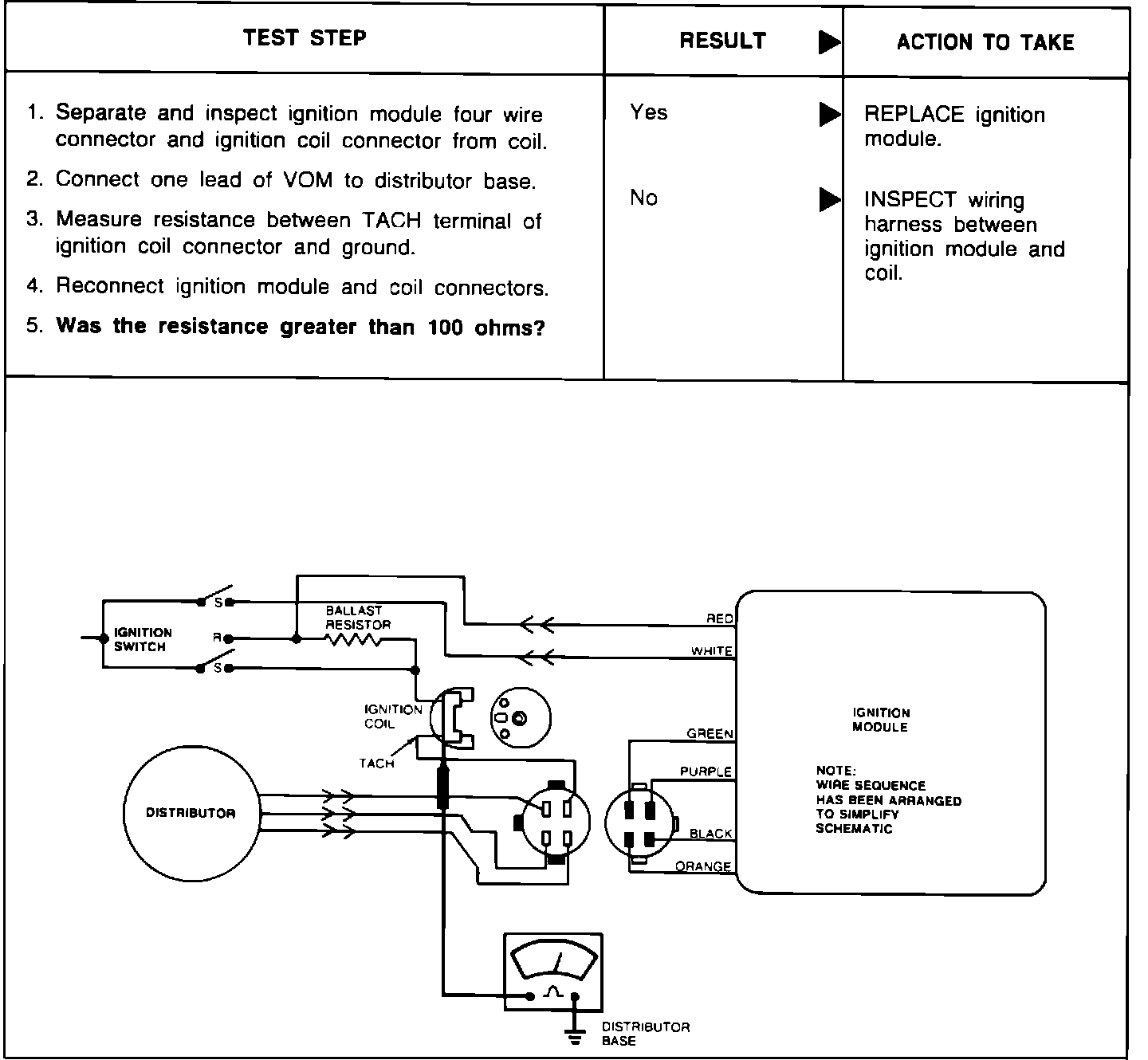

Test 10 - Module to Coil Wire

Module To Coil Wire - Test 10.:
