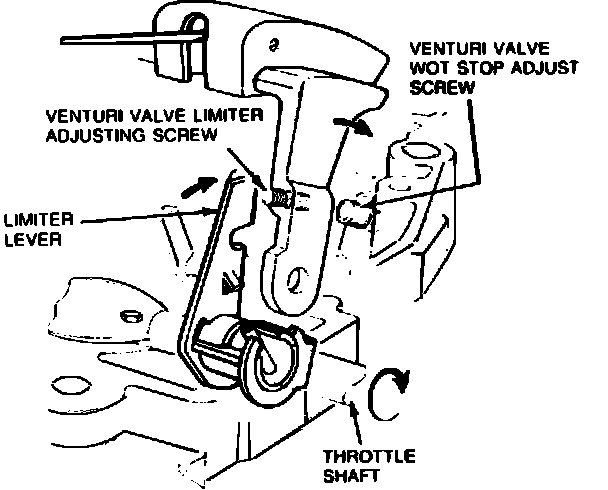

Venturi Valve Limiter

Venturi Valve Limiter:

At wide open throttle, under some load condition the control vacuum, acting on the venturi valve diaphragm, may not be strong enough to overcome diaphragm return spring pressure. To prevent closing of the venturi valves in this situation, the limiter lever attached to the throttle shaft contacts the venturi valve leg and holds it open.
