Data Link Connector: Locations

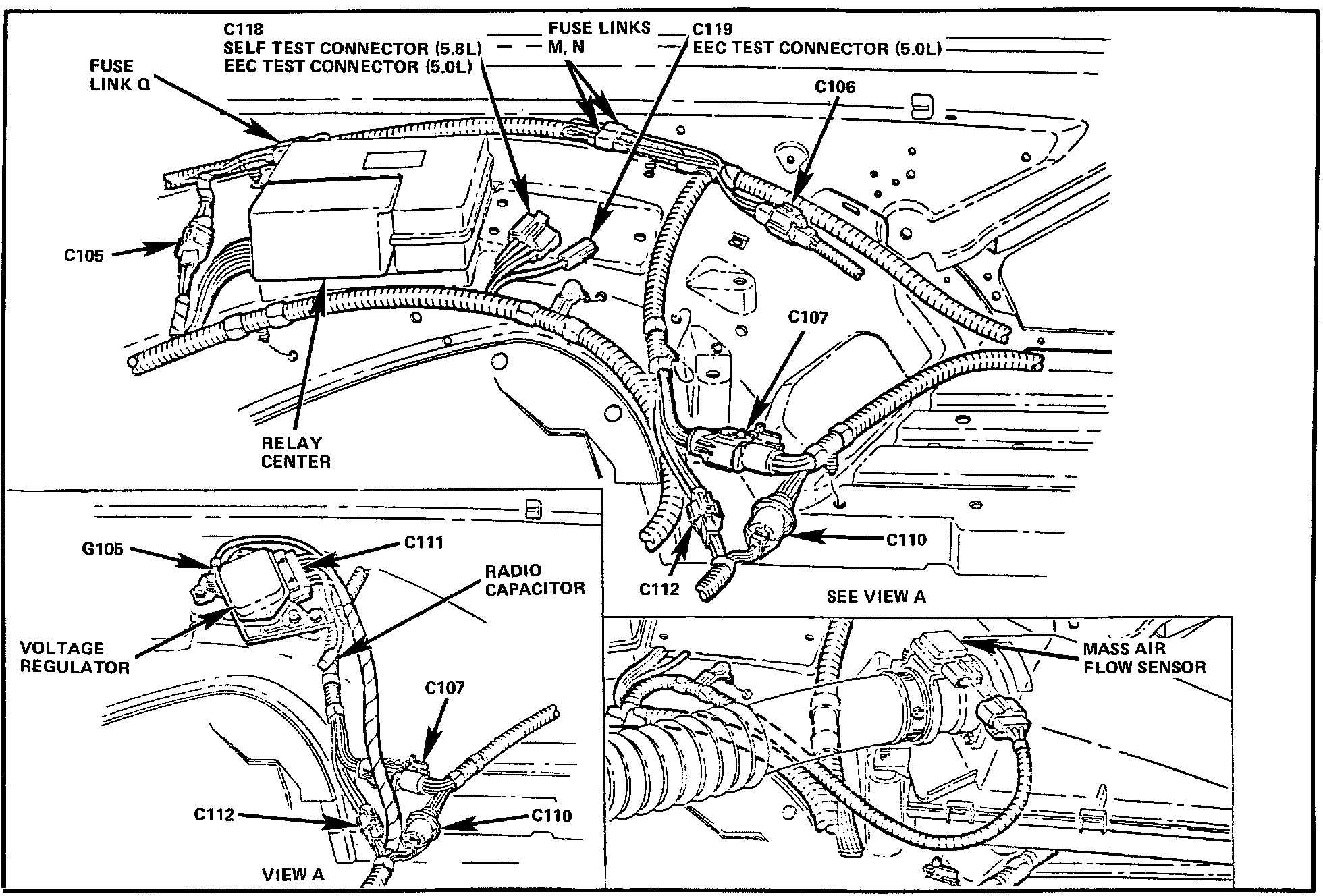

Location View - Left Hand Fender Apron:
The Microprocessor Control Unit (MCU) Self-Test Output (STO) Connector C118 is located on the Left Hand fender apron, near the Take Out (T/O) to the Ignition Module.
The Microprocessor Control Unit (MCU) Self-Test Output (STO) Connector C118 is located on the Left Hand fender apron, near the Take Out (T/O) to the Ignition Module.
