With A/C

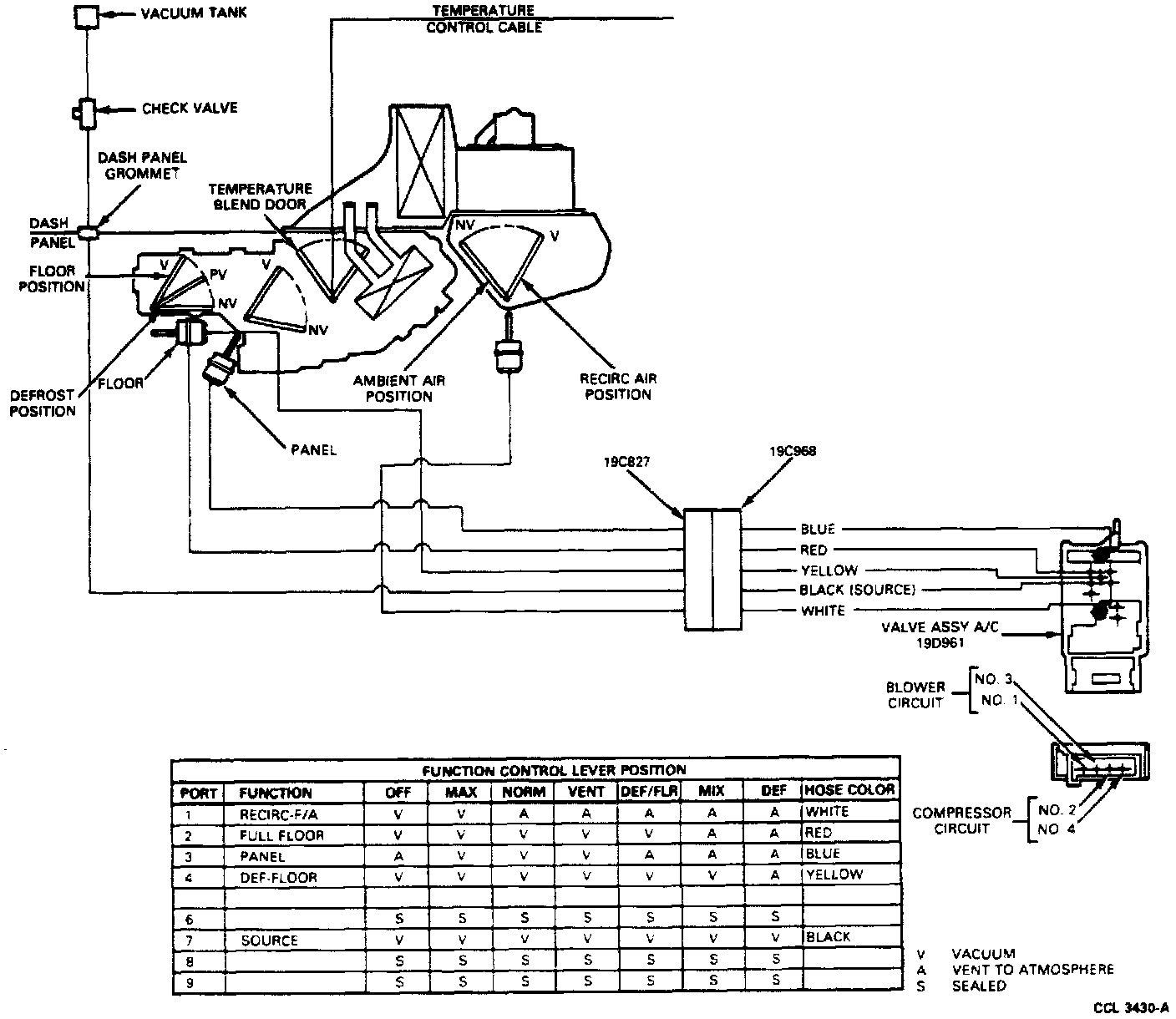

A/C-Heater System Vacuum Diagram And Selector Test:

Refer to the Manual A/C-Heater System Vacuum Diagram and Selector Test illustration to assist in performing vacuum system and function selector valve tests. Also refer to Manual A/C-Heater System Vacuum Leak Diagnosis Chart. Manual A/C-Heater Vacuum Leak Diagnosis Chart
