ATC System Airflow Schematic and Vacuum Control Chart

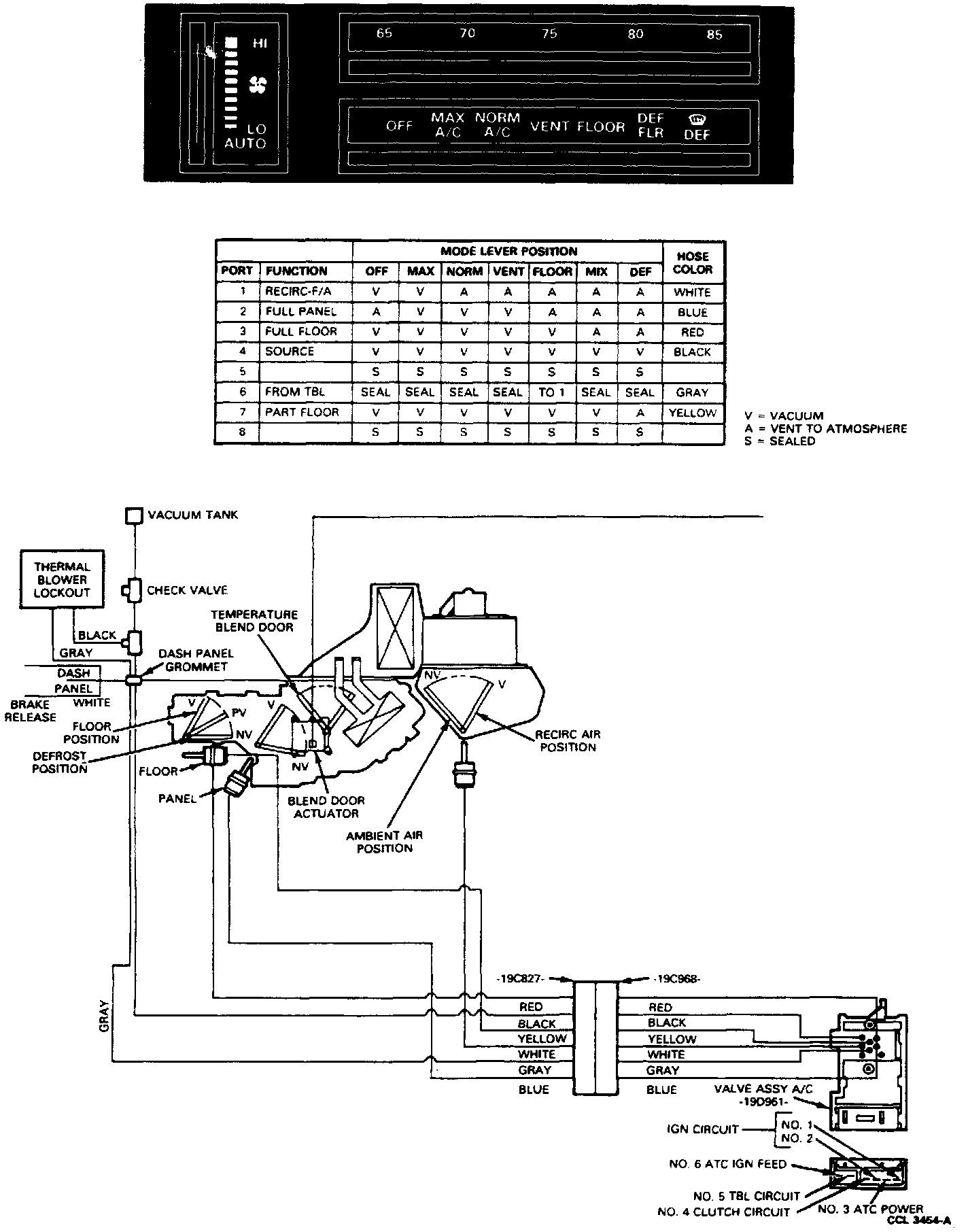

System Airflow Schematic And Vacuum Control Chart:






Refer to the image to assist in performing airflow function and Vacuum Motor Application Tests.
