A/C-Heater System Electrical Wiring Diagram And Continuity Test:

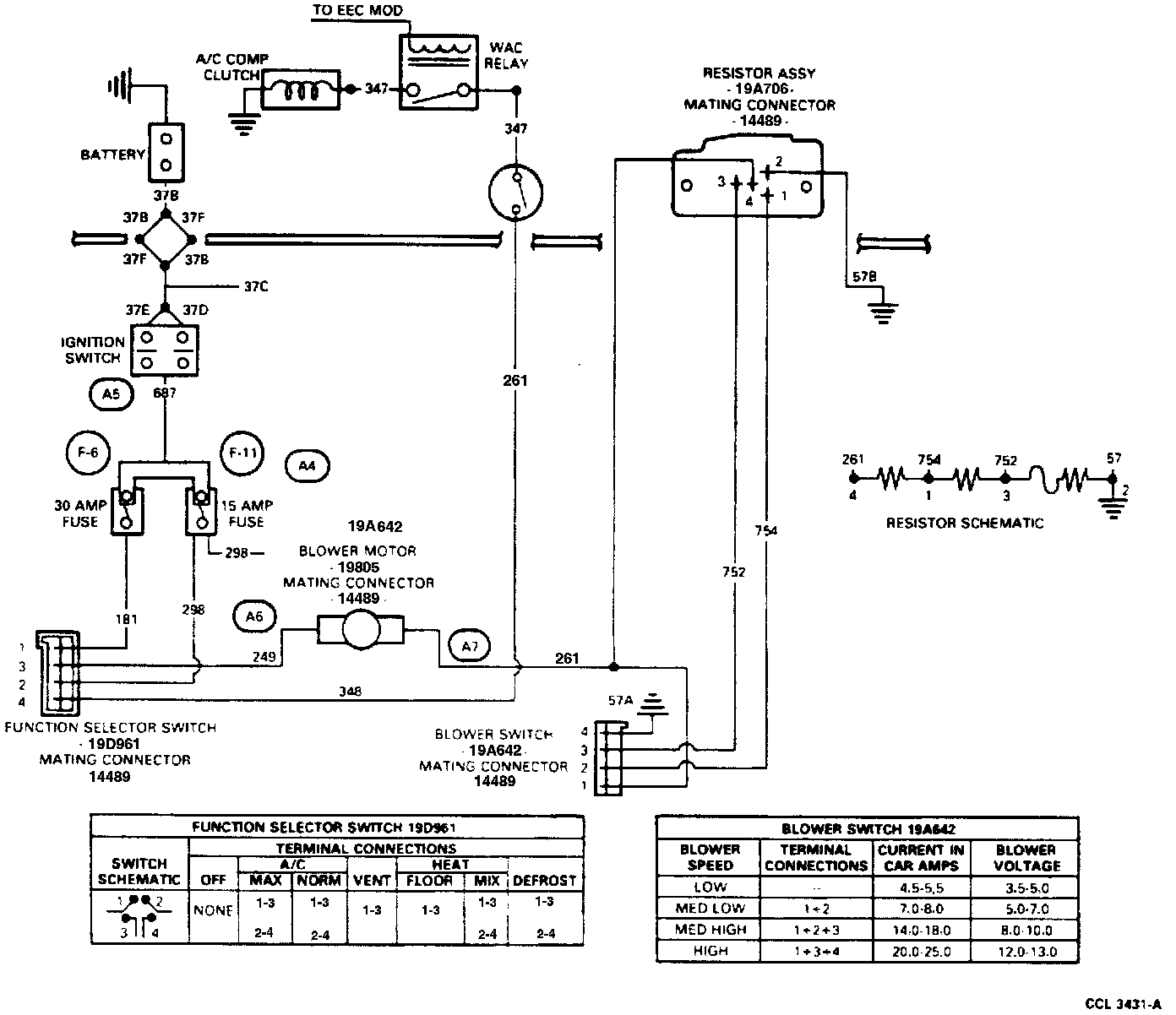

Refer to the Heater System Electrical Wiring Diagram and Continuity Test image to assist in performing component and system electrical wiring and continuity tests.

Air Conditioning & Heating:

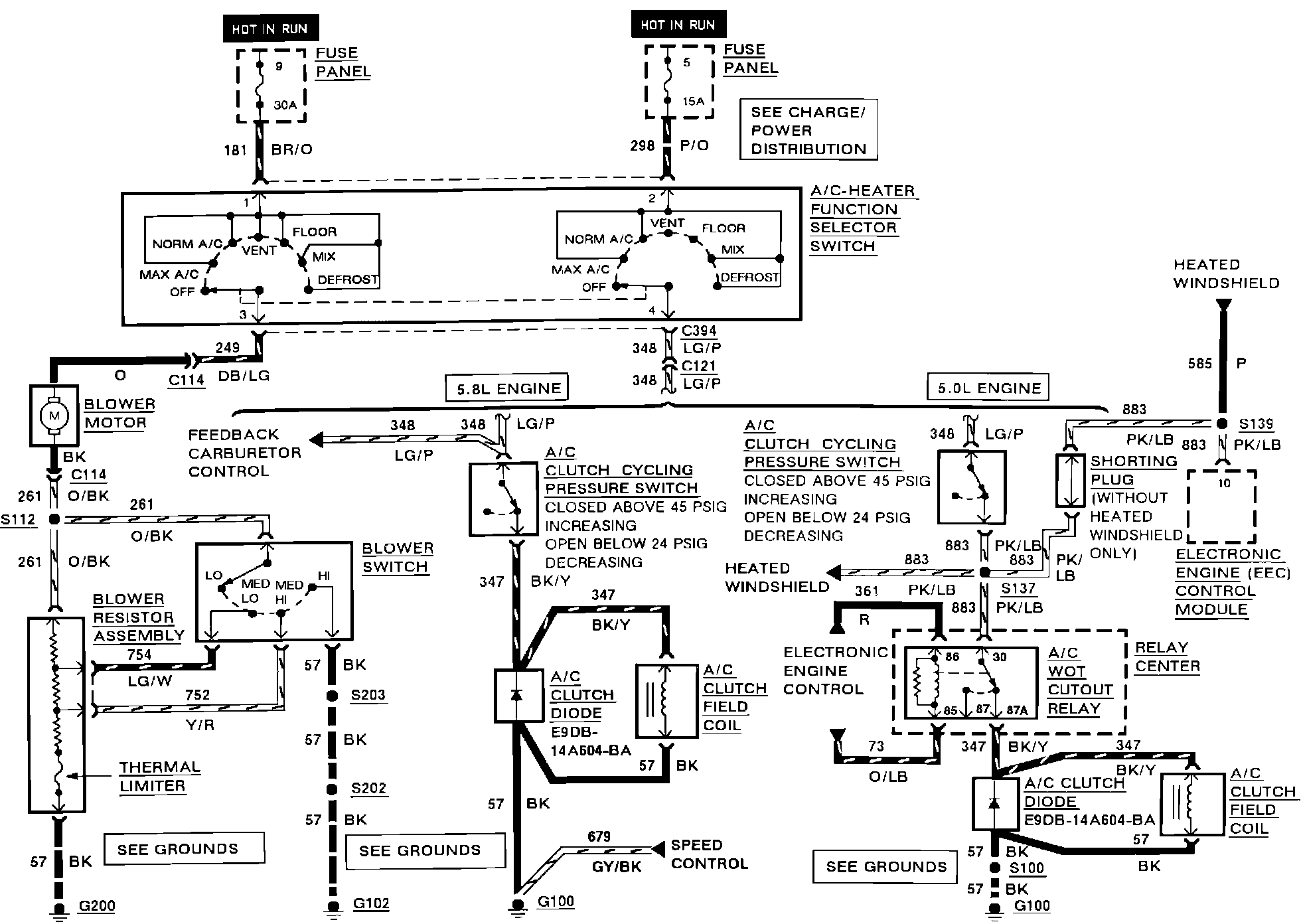

Use the Electrical Wiring Circuit and the Blower Switch Chart/Terminal Location And Testing Procedure for complete circuit schematics and wire colors.
