Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G200 >> Part 1 of 2

Part 1 of 2

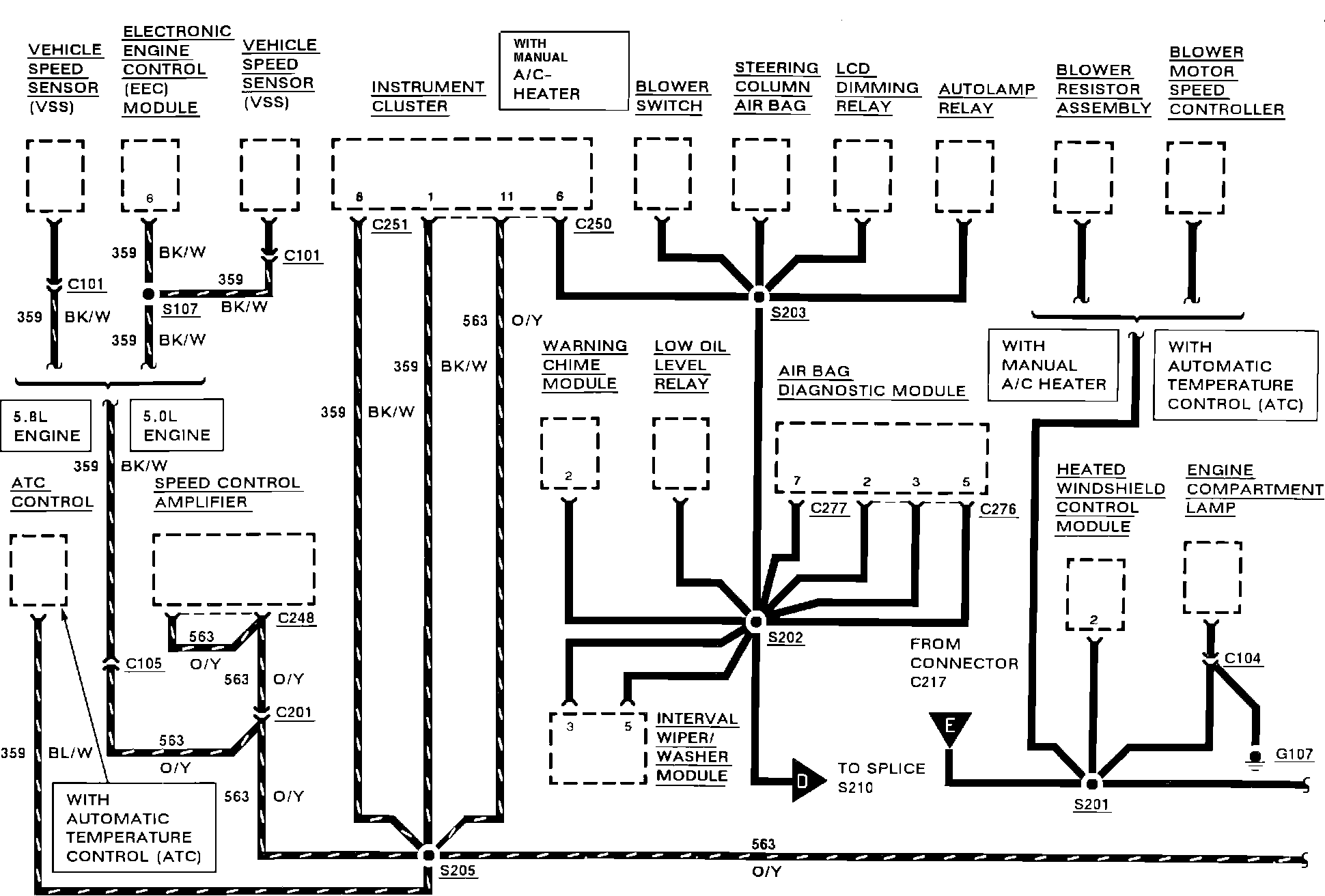

G200:
