Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G100, G101, G107, G108, G112

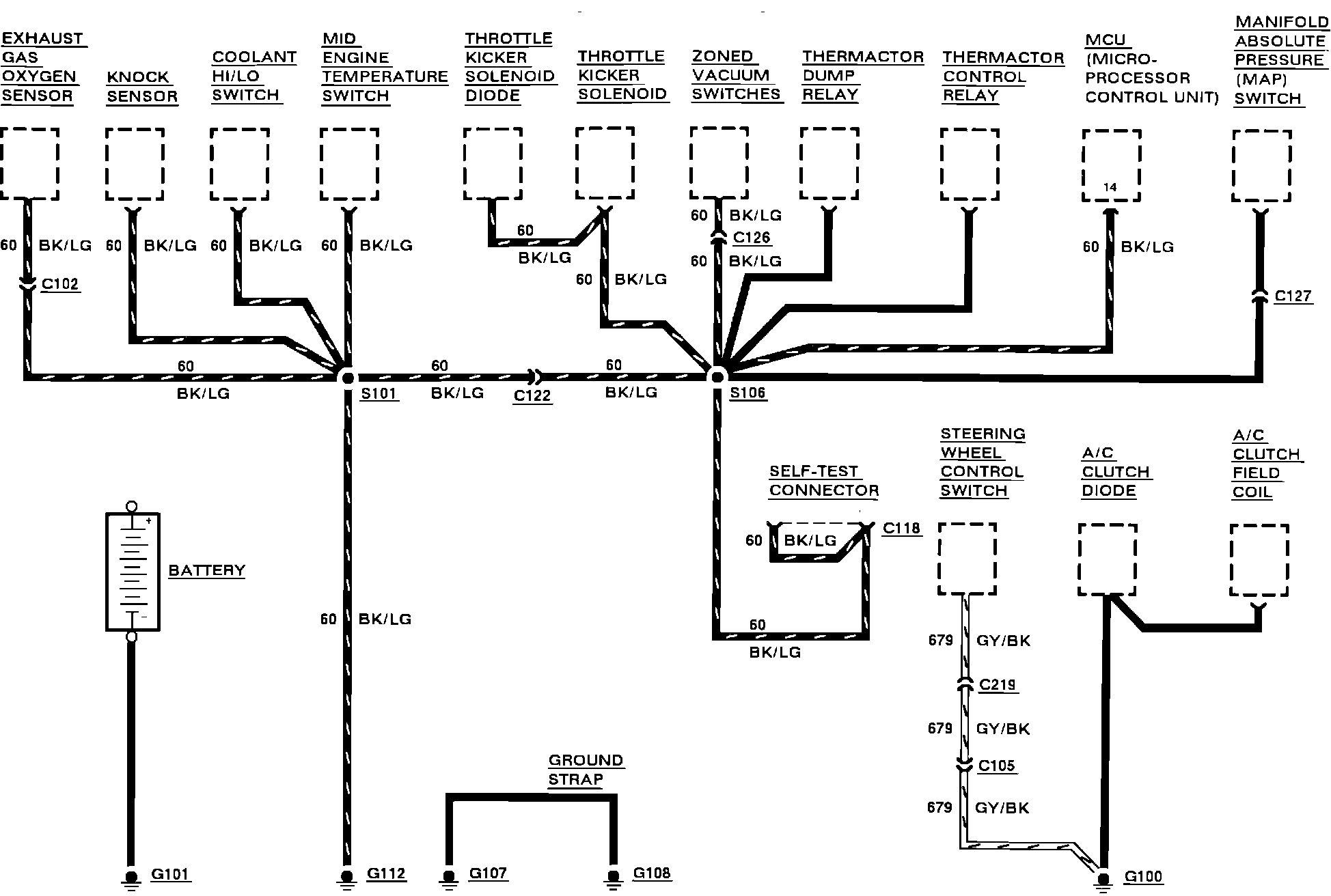

G100, G101, G107, G108, G112

G100,G101,G107,G108,G112:
