Police Option

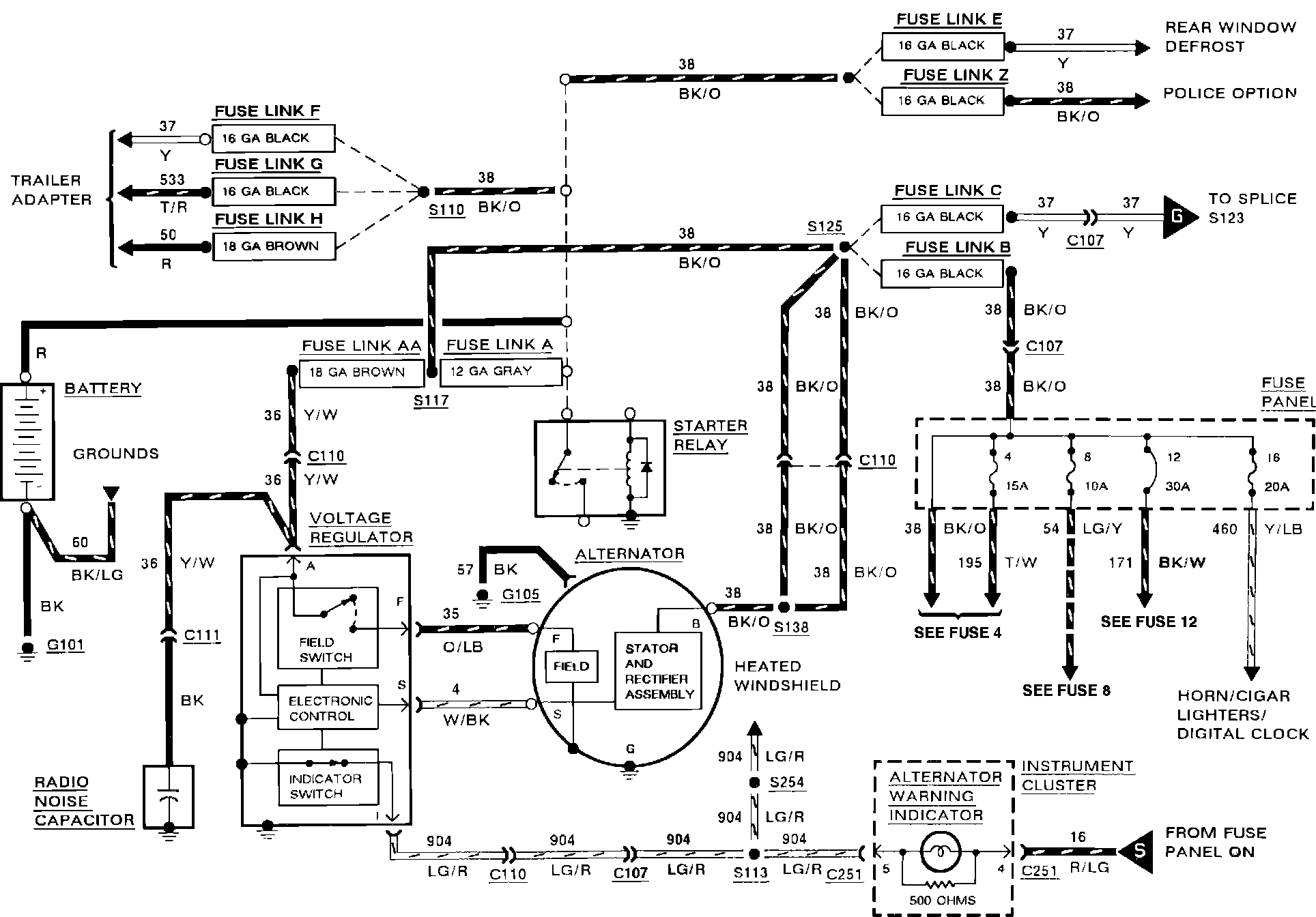

Power Distribution - Police Option:



Power Distribution With Heated Windshield And Police Option:
