Disassembly and Assembly

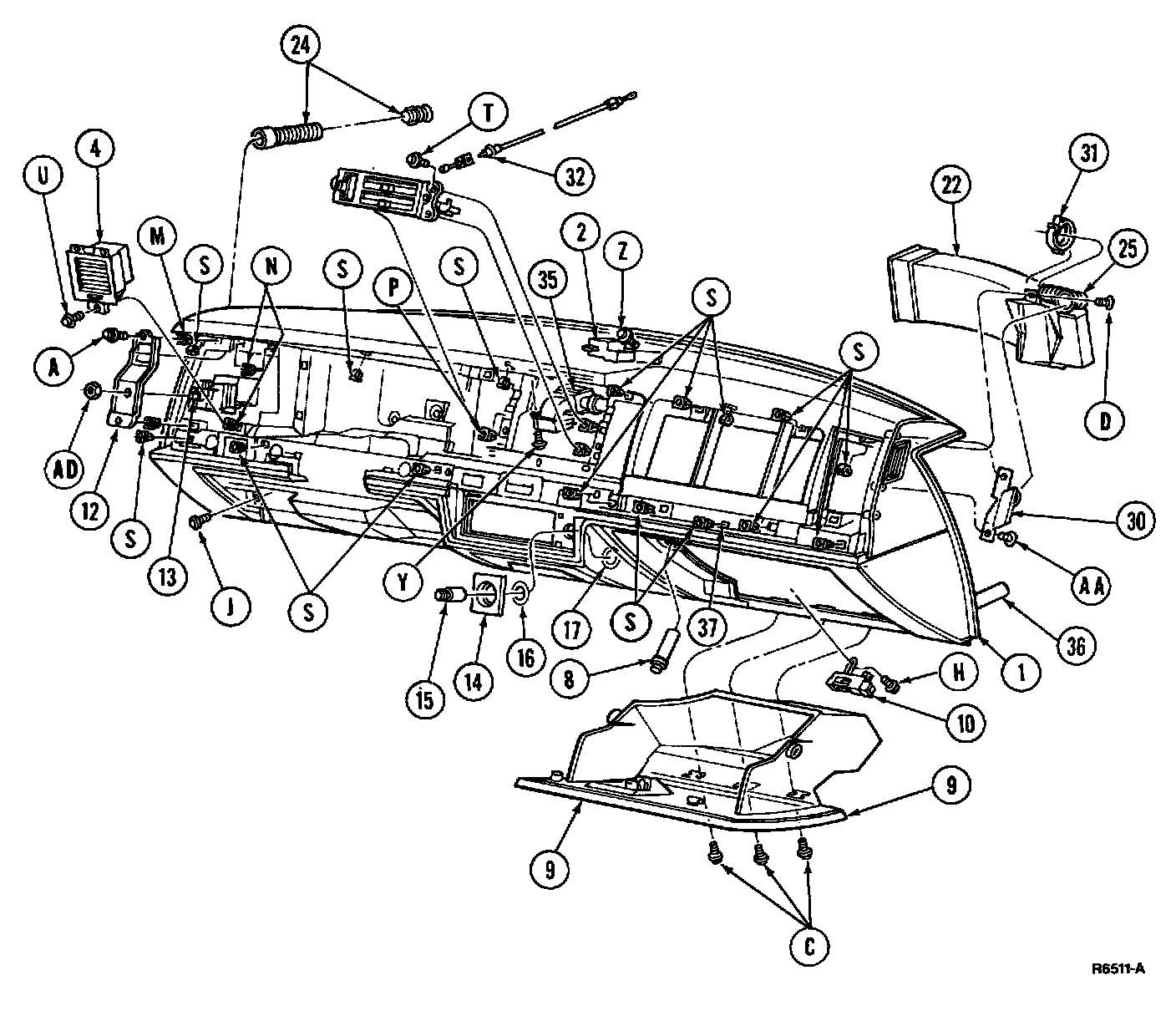

Instrument Panel - Front View:

Instrument Panel - Rear View:

Harness Installation:

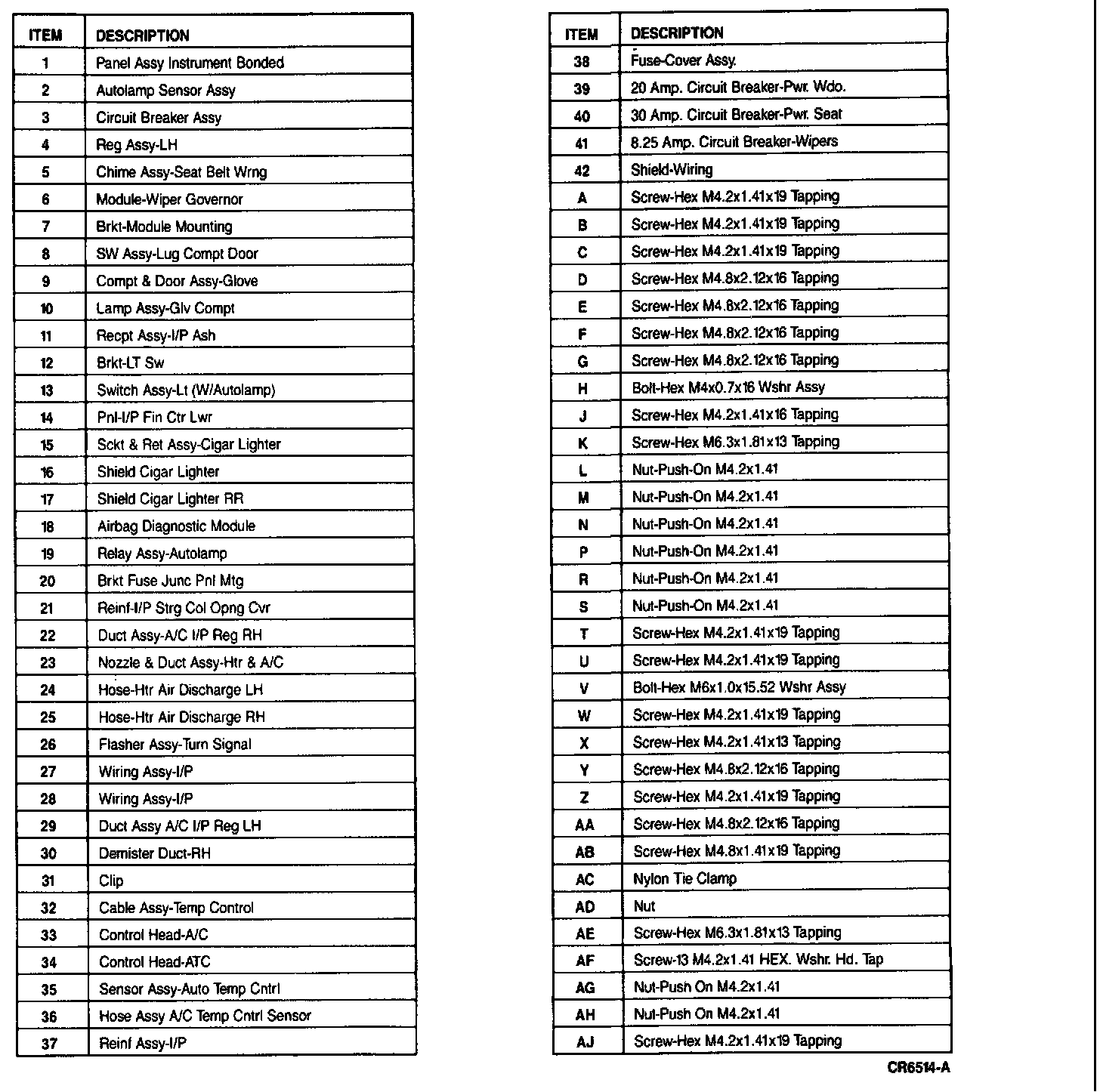

Component Index:

NOTE: Refer to the illustrations when disassembling or assembling the instrument panel.
