Home >> Mercury >> 1990 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Premium W/ESR & ESC

Premium W/ESR & ESC

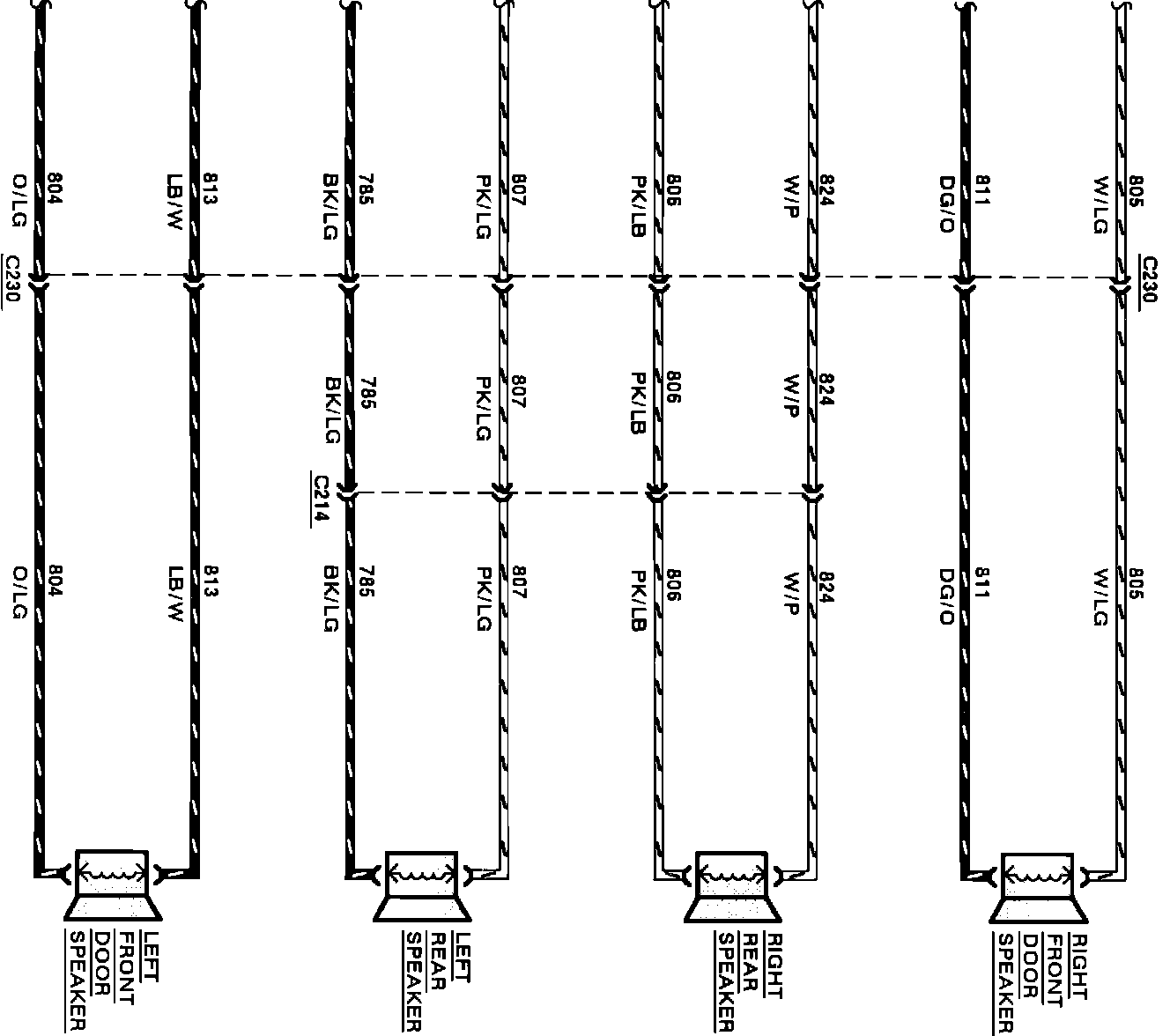

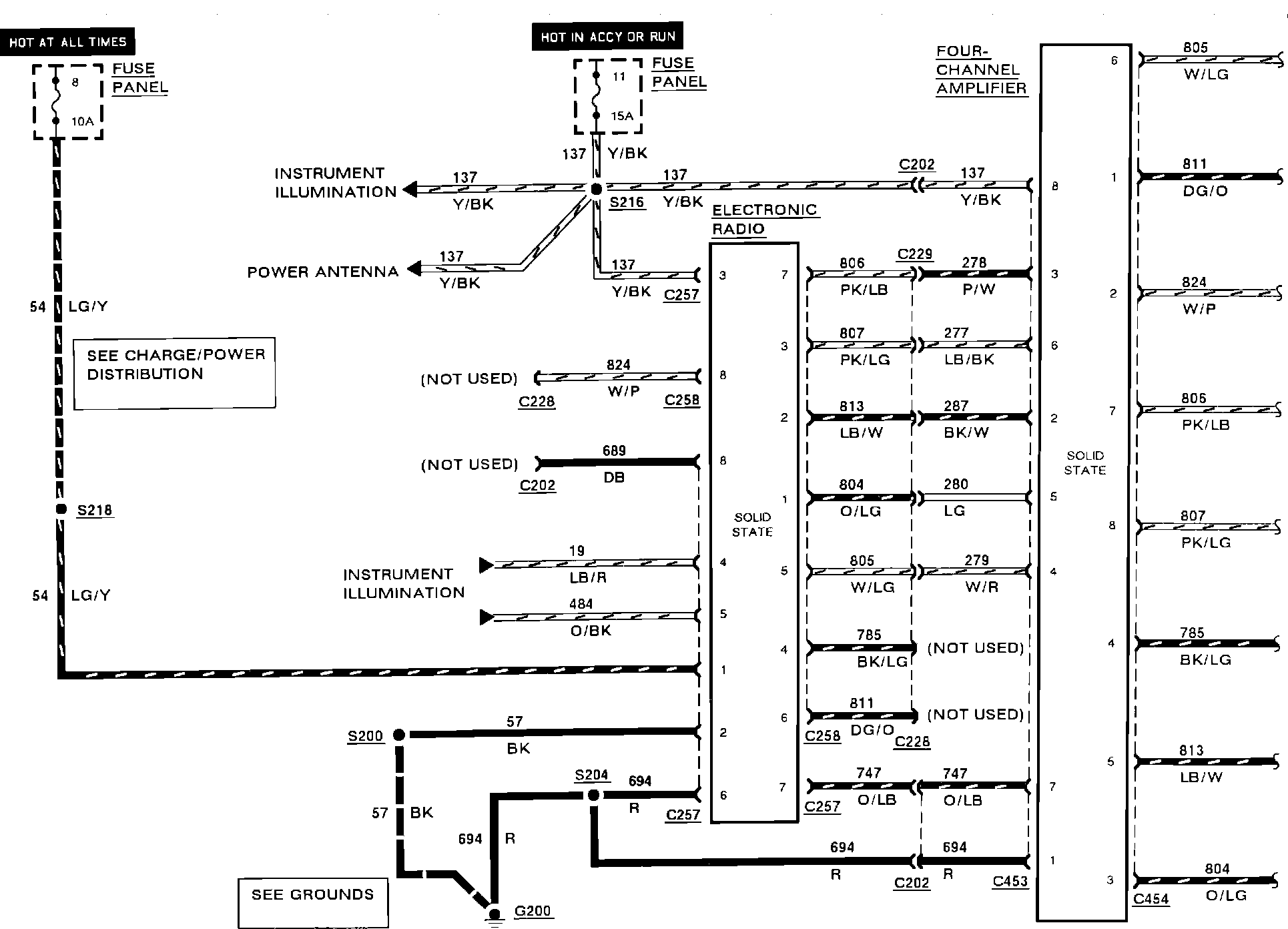

Premium W/ESR & ESC:



Premium W/ESR & ESC:
