Front Seat Shoulder Strap and Retractor Assembly

REMOVAL
1. Cycle shoulder safety straps to A-pillar position. Remove shoulder belt from emergency release buckle of motor and track carrier assembly, allowing safety straps to retract into retractor.
2. Disconnect seat wiring at floor.
3. Remove front seat and seat track assembly.
4. Remove support assembly with belt and retractor assembly, lap belt buckle and strap assembly still attached. Remove front attaching nut and bolt. Remove rear Torx(r) head bolt retaining support assembly to seat. Remove support assembly.
5. Remove (rear) Torx(r) head bolt retaining shoulder strap buckle assembly to shoulder strap and retractor assembly. Remove buckle assembly.
6. Remove nut and washer assembly retaining shoulder strap and retractor to shoulder strap support.
7. Rotate retractor up away from support assembly until hooks disengage and remove retractor from support assembly by pulling stud out of hole.





INSTALLATION

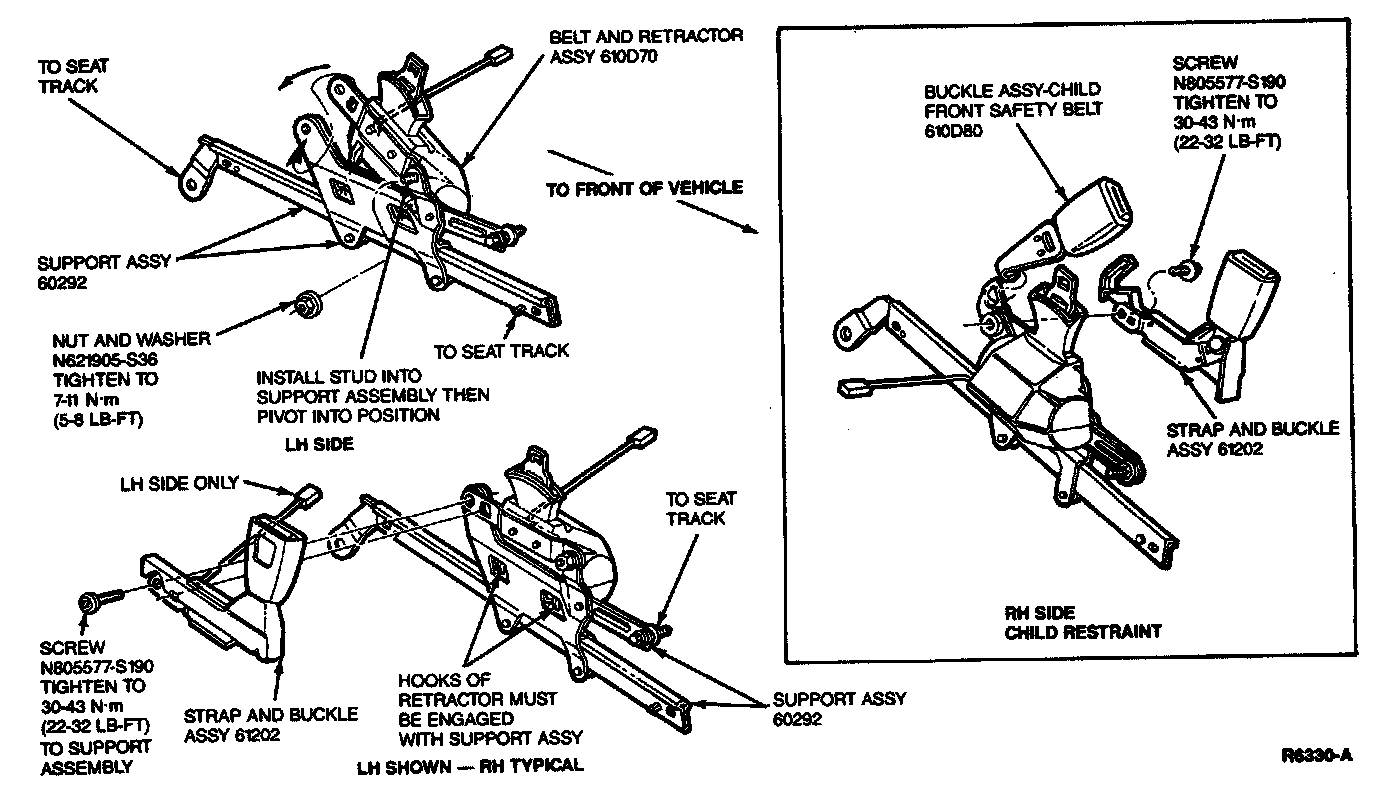

1. Grasp shoulder strap and retractor assembly and engage retractor mounting stud into hole in shoulder strap support assembly. Loosely install retaining nut and washer assembly.
2. Rotate retractor down toward support assembly, making sure both retractor housing locking hooks engage support assembly and that the retractor (rear) attachment bracket lies on top of support assembly.
3. Position lap belt buckle and strap assembly to indexing tabs on belt and retractor assembly mounting strap. Ensure mounting holes are aligned and install Torx(r) head bolt to support assembly.
4. Position support assembly with belt retractor assembly and lap belt buckle and track assembly attached, to the seat and track assembly. Ensure seat belt wire and connector are properly routed between the seat frame and seat track. Install retaining nuts and bolts. The rubber washer must be installed between the assembly and seat track.
5. Secure safety belt wiring connectors to the metal connector mounting bracket on seat track.

NOTE: Make sure all attachments are tightened to specification.

6. Install front seat and seat track assembly into vehicle. Connect seat wiring to floor harness.
7. Connect shoulder safety strap to the emergency release buckle of the motor and track carrier.

NOTE: Twist shoulder safety belt 1/2 turn, as shown, prior to connecting to emergency release buckle assembly.
