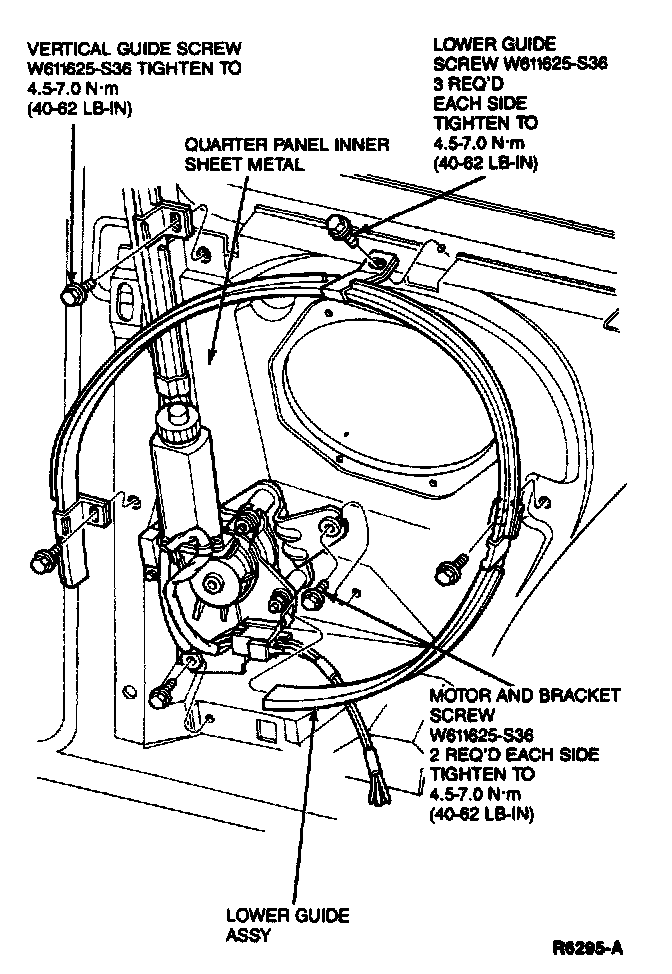

Motor and Bracket Assembly

REMOVAL and INSTALLATION
1. Remove the rear seat cushion and rear seat back assembly.
2. Remove the A-pillar and the quarter panel trim.
3. Remove the lower bolt retaining the vertical guide to the quarter panel inner sheet metal.
4. Disengage the lower guide from the motor guide.
5. Disconnect the electrical connector at the motor.

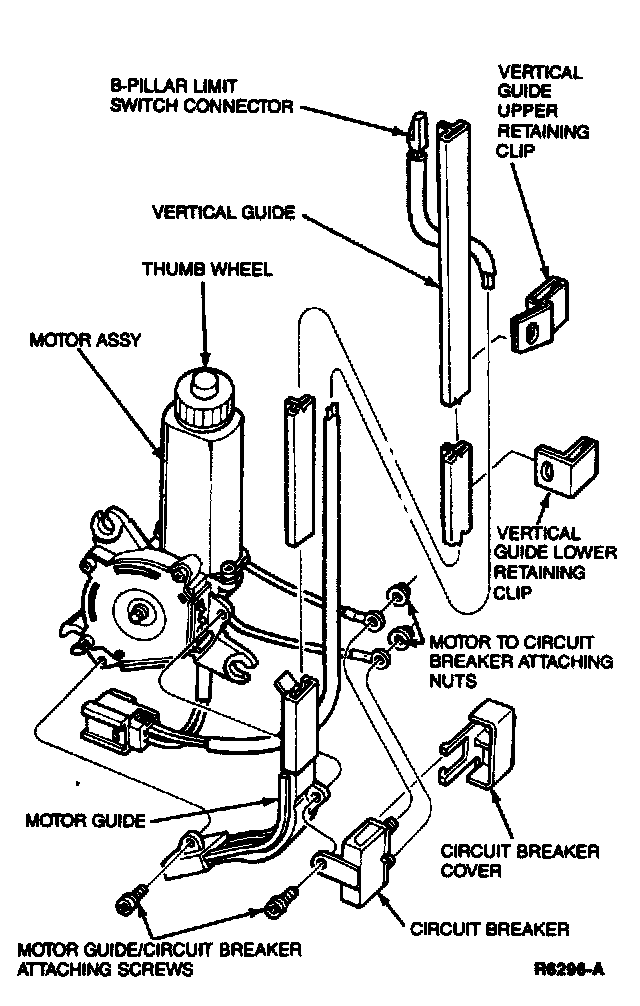

6. Remove the two bolts retaining the motor to the quarter panel inner sheet metal.





7. Disengage the vertical guide from the motor guide.
8. Rotate the thumb wheel on the motor counterclockwise to disengage the drive belt from the motor drive gear.
9. Remove the motor and bracket assembly from the vehicle.
10. To install, reverse Steps 1 through 9.
