Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test F - Engine Running Code 18, Continuous Memory Code 49 >> Steps F1 Through F3

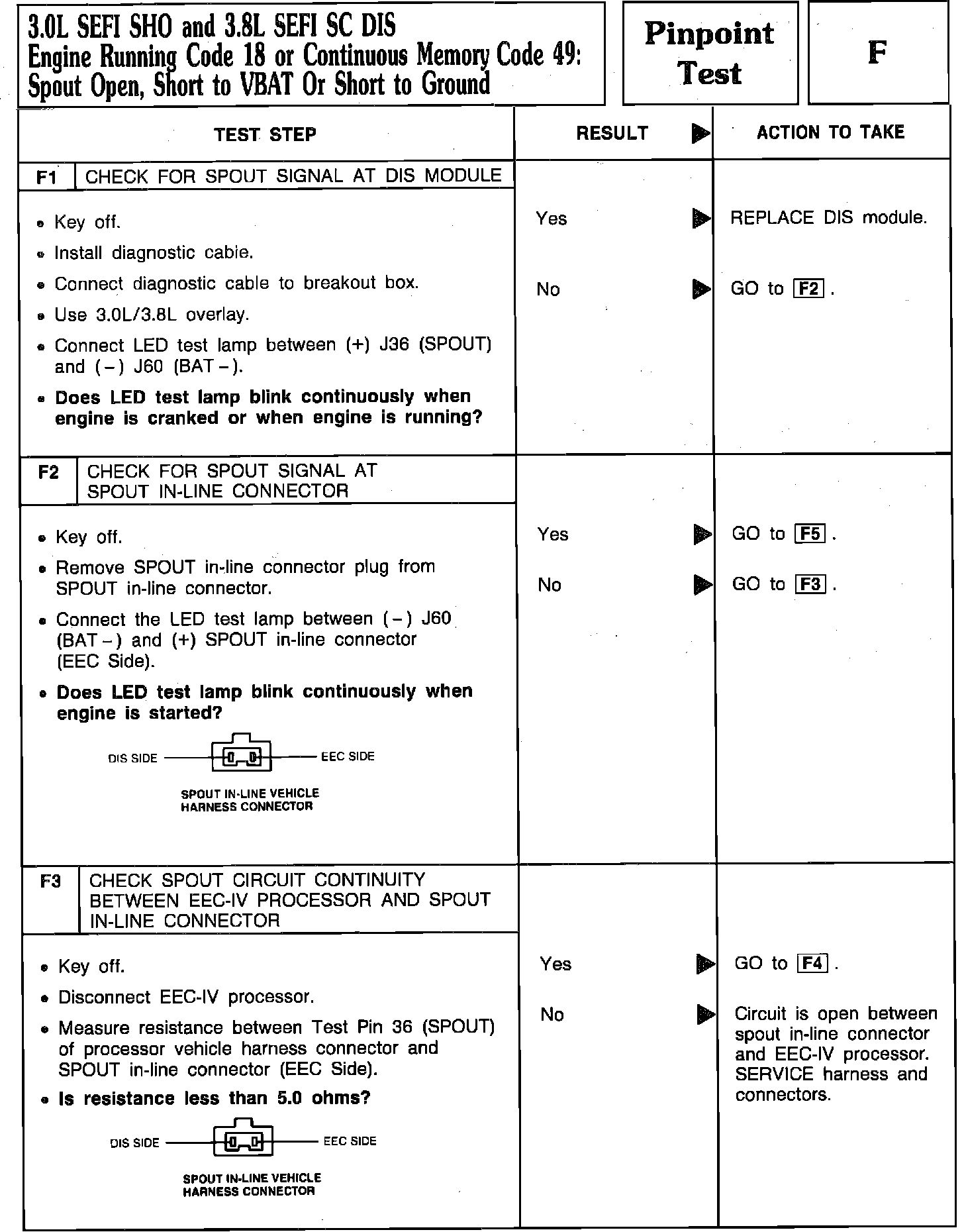

Steps F1 Through F3

Codes 18 and 49 Steps F1 thru F3:
