Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test D - Continuous Memory Codes 45,46, or 48 >> Steps D3 Through D4

Steps D3 Through D4

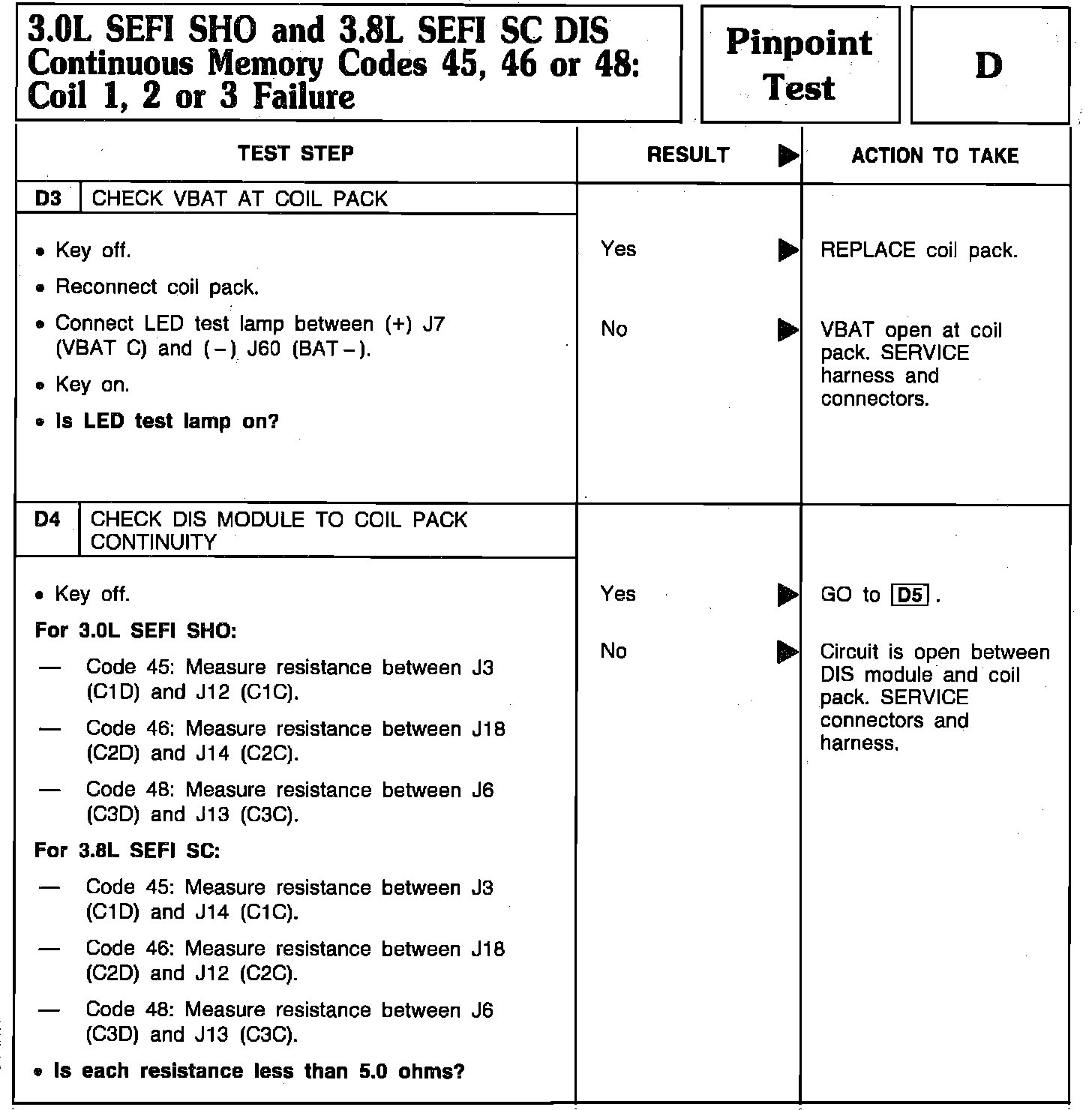

Codes 45, 46, or 48 Steps D3 thru D4:
