Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test A - No Start >> Steps A26 Through A29

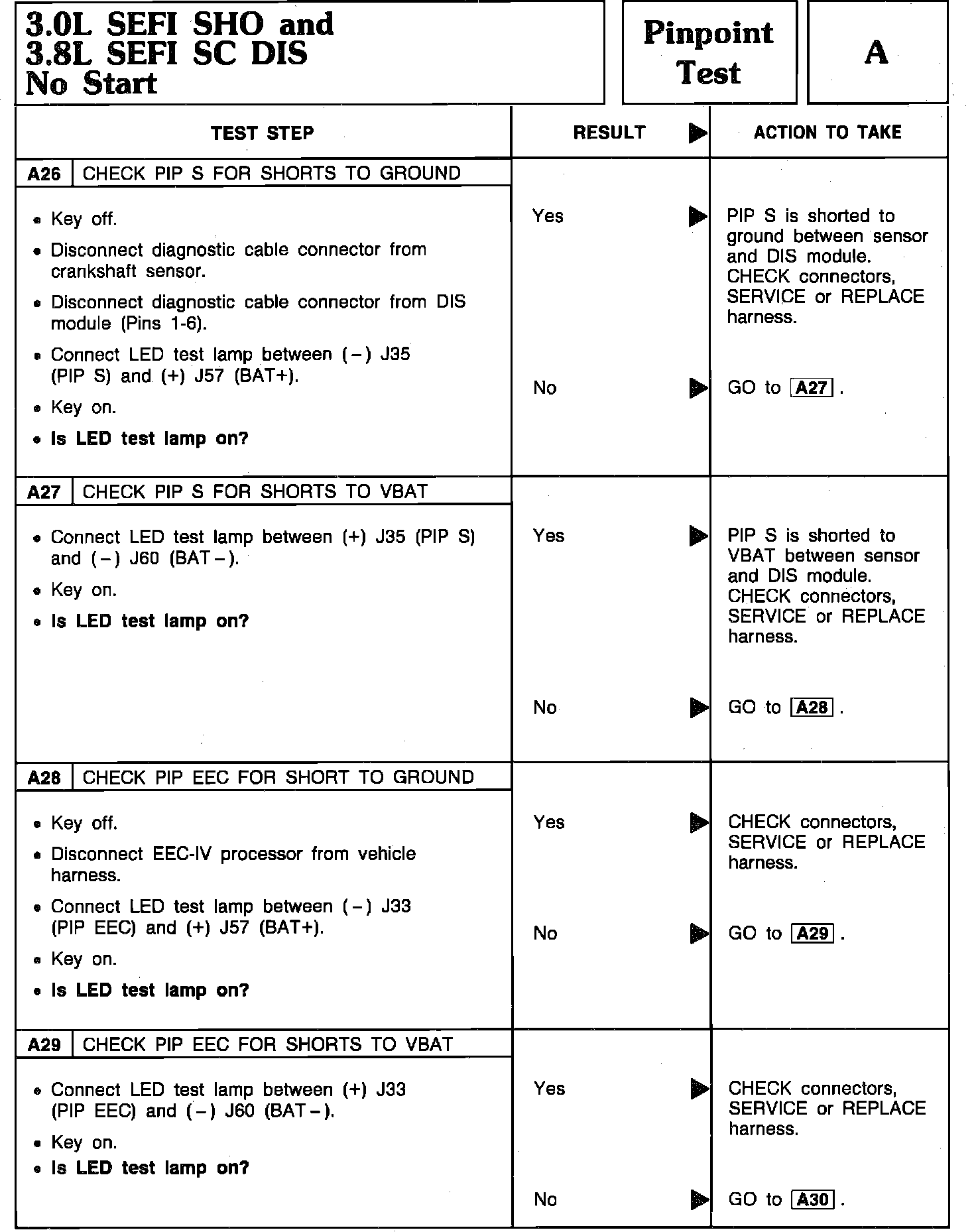

Steps A26 Through A29

No Start Steps A26 thru 29:
