Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test A - No Start >> Steps A17 Through A20

Steps A17 Through A20

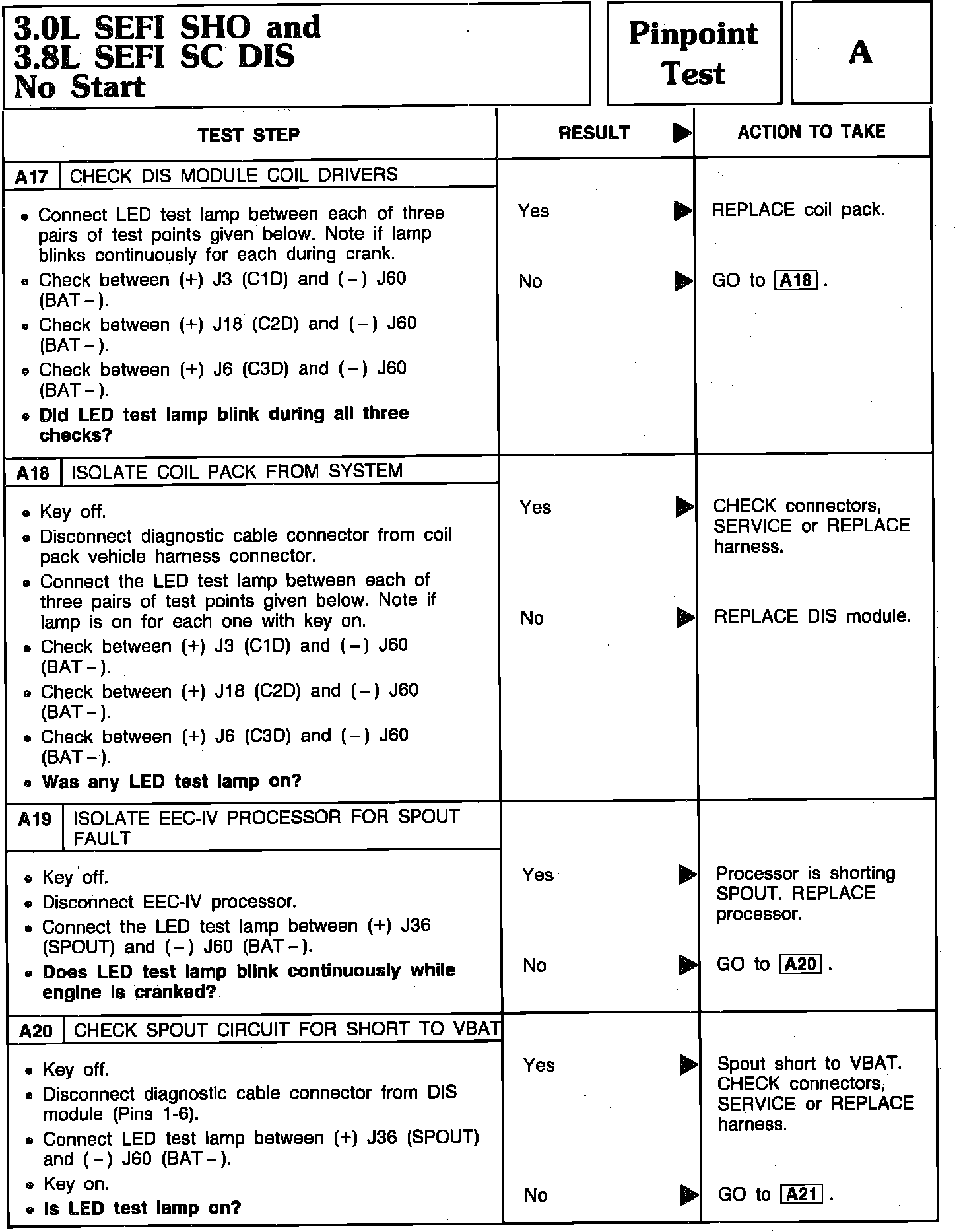

No Start Steps A17 thru A20:
