Wiring Diagrams

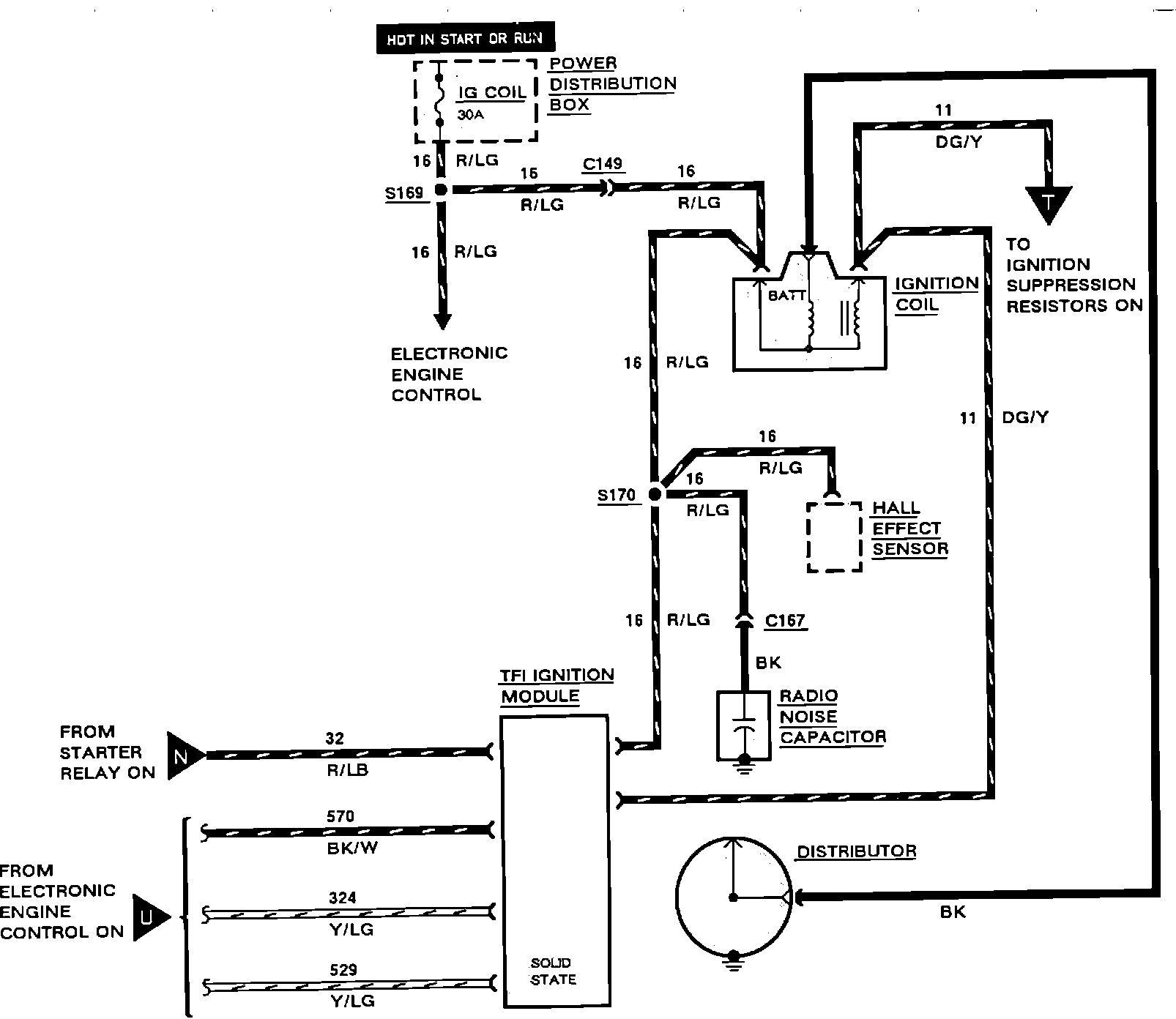

Wiring Diagram - Ignition System:



Start/Ignition System Part 1 of 4:



Start/Ignition System Part 2 of 4:
