Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Tank >> Specifications >> Mechanical Specifications >> General Specifications

General Specifications

Tightening Specifications:

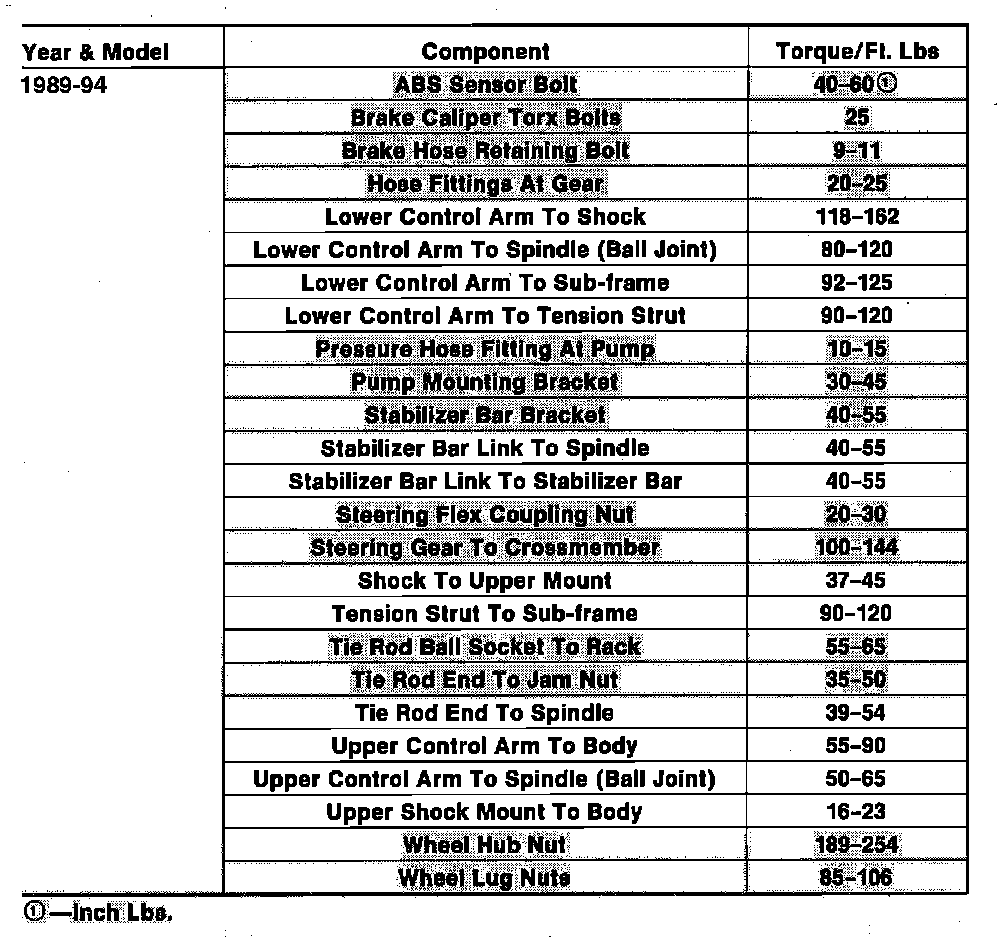

Fig. 14 Tightening Specifications:

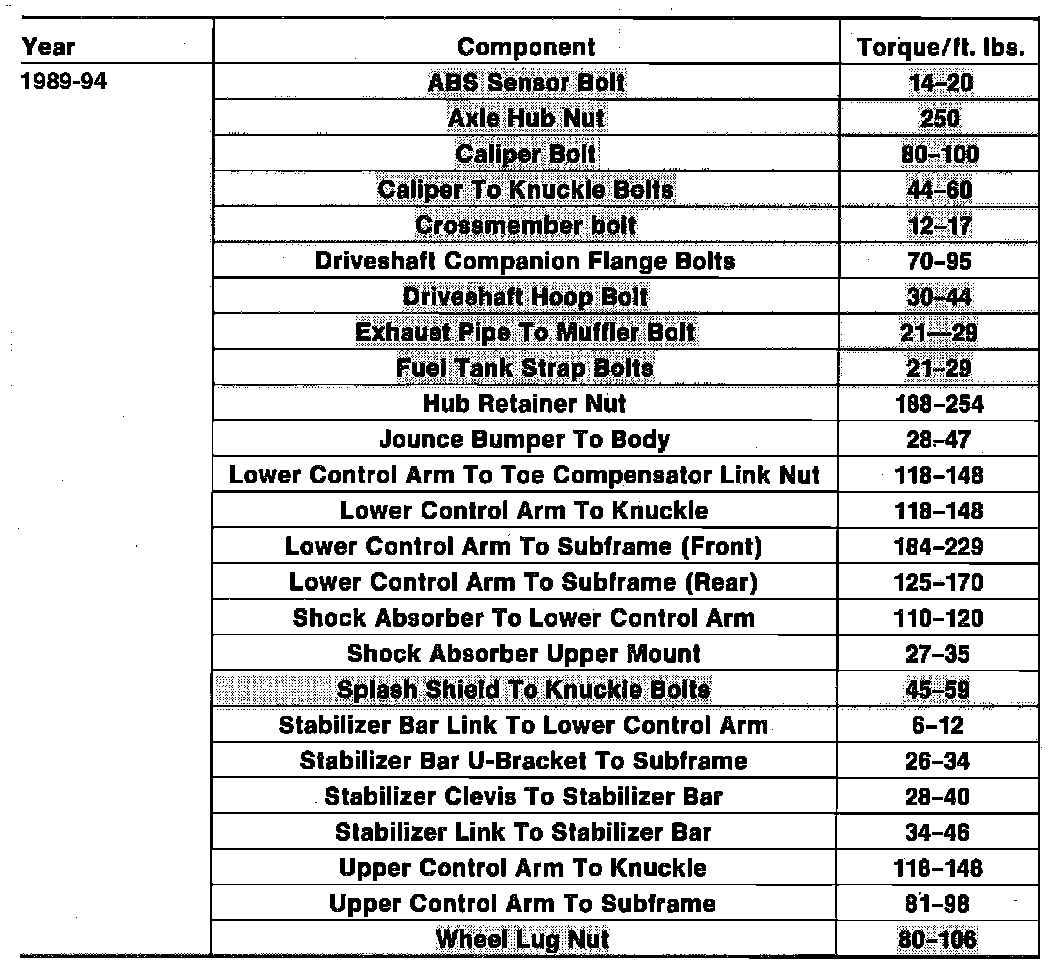

Fig. 15 Tightening Specifications:
