Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> A7: Check Compressor Clutch

A7: Check Compressor Clutch

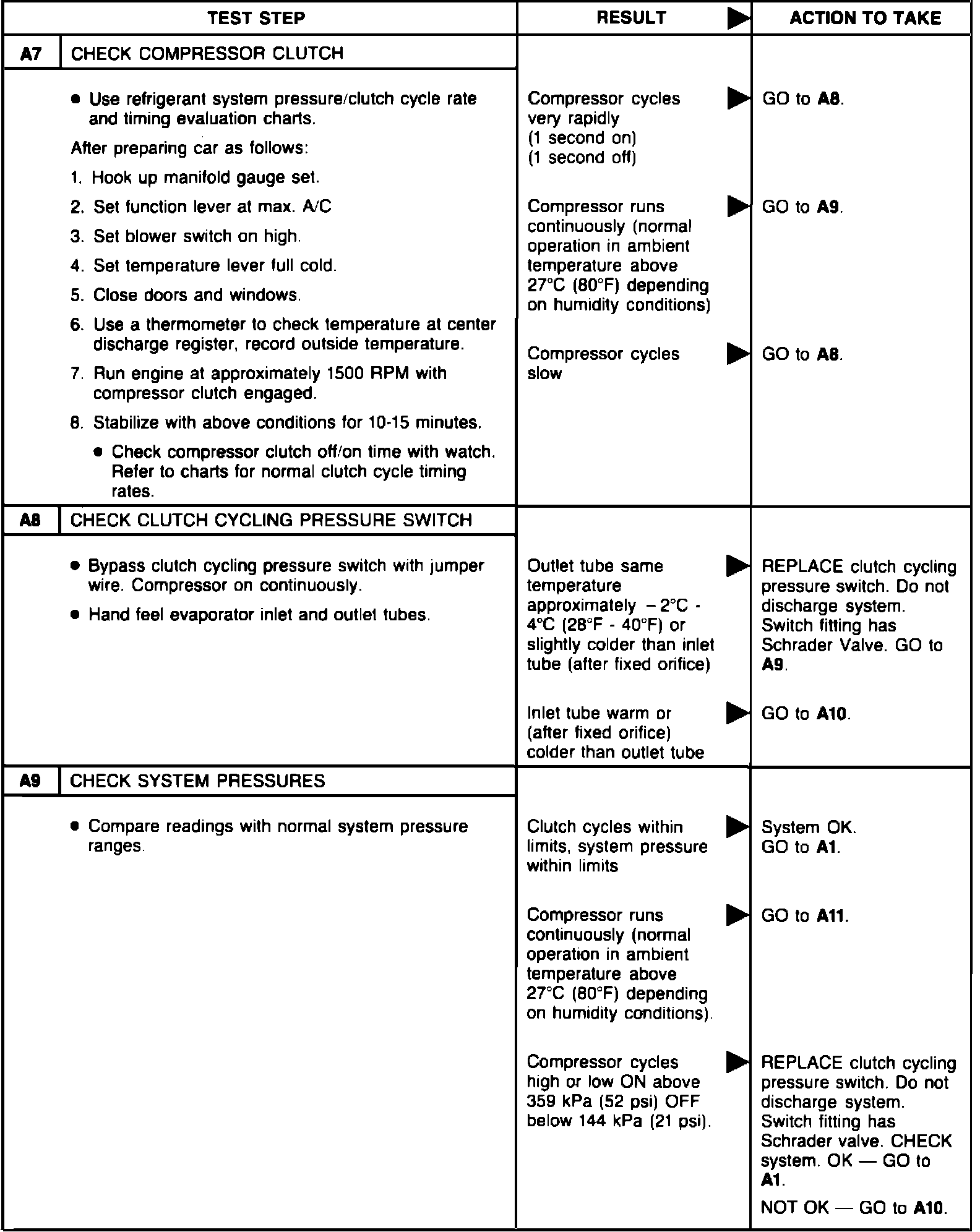

Fig. 1 Insufficient A/C cooling diagnosis (Part 2 of 3).:
