Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> KF6 - Check EDF/HEDF Circuit For Short to Ground

KF6 - Check EDF/HEDF Circuit For Short to Ground

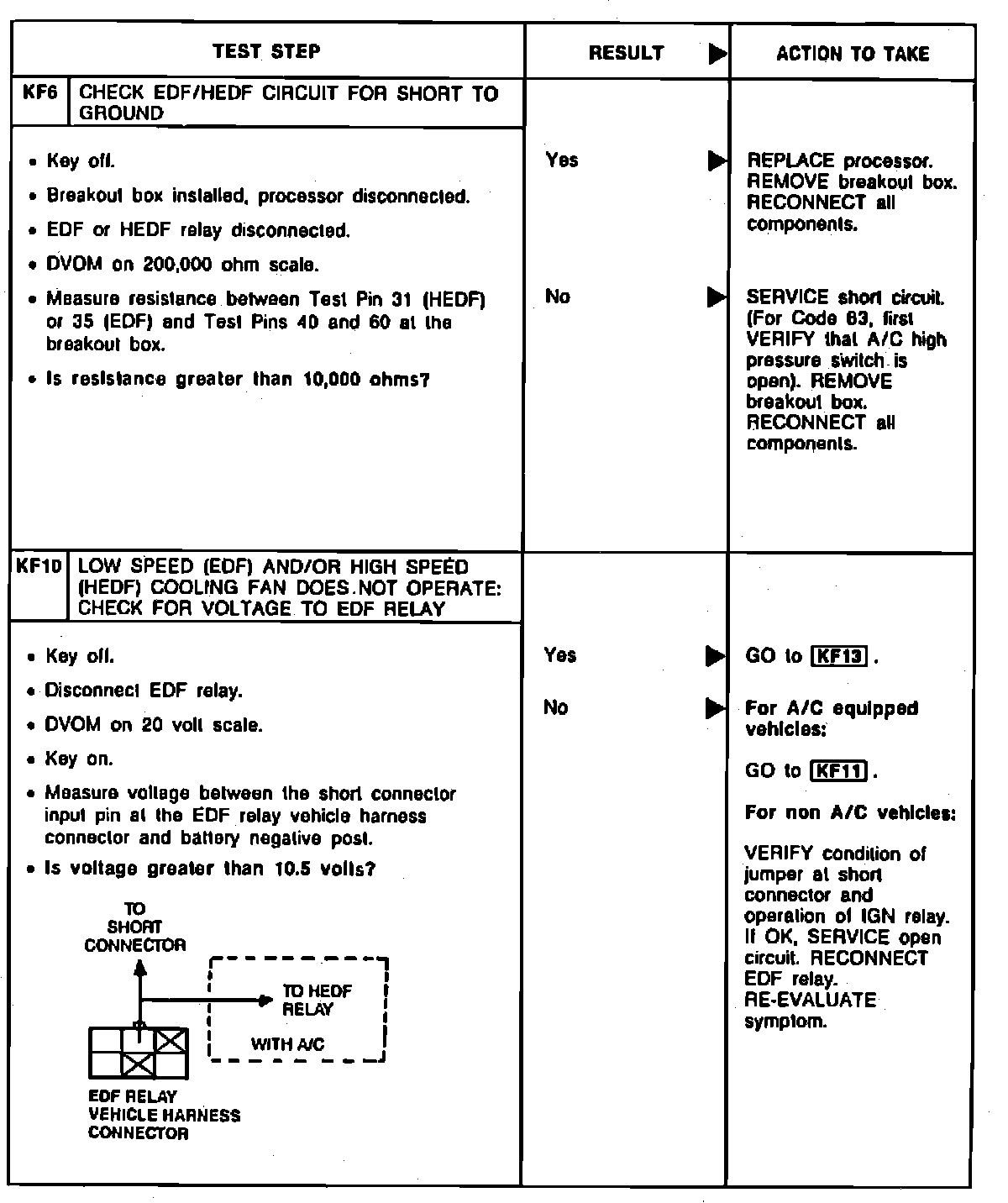

Fig. 5d Fan Pinpoint Test KF6 & KF10:
