KF17 - Verify Continuity of Circuits, A/C High Pressure Switch
KF17 - Verify Continuity of Circuits, A/C High Pressure Switch

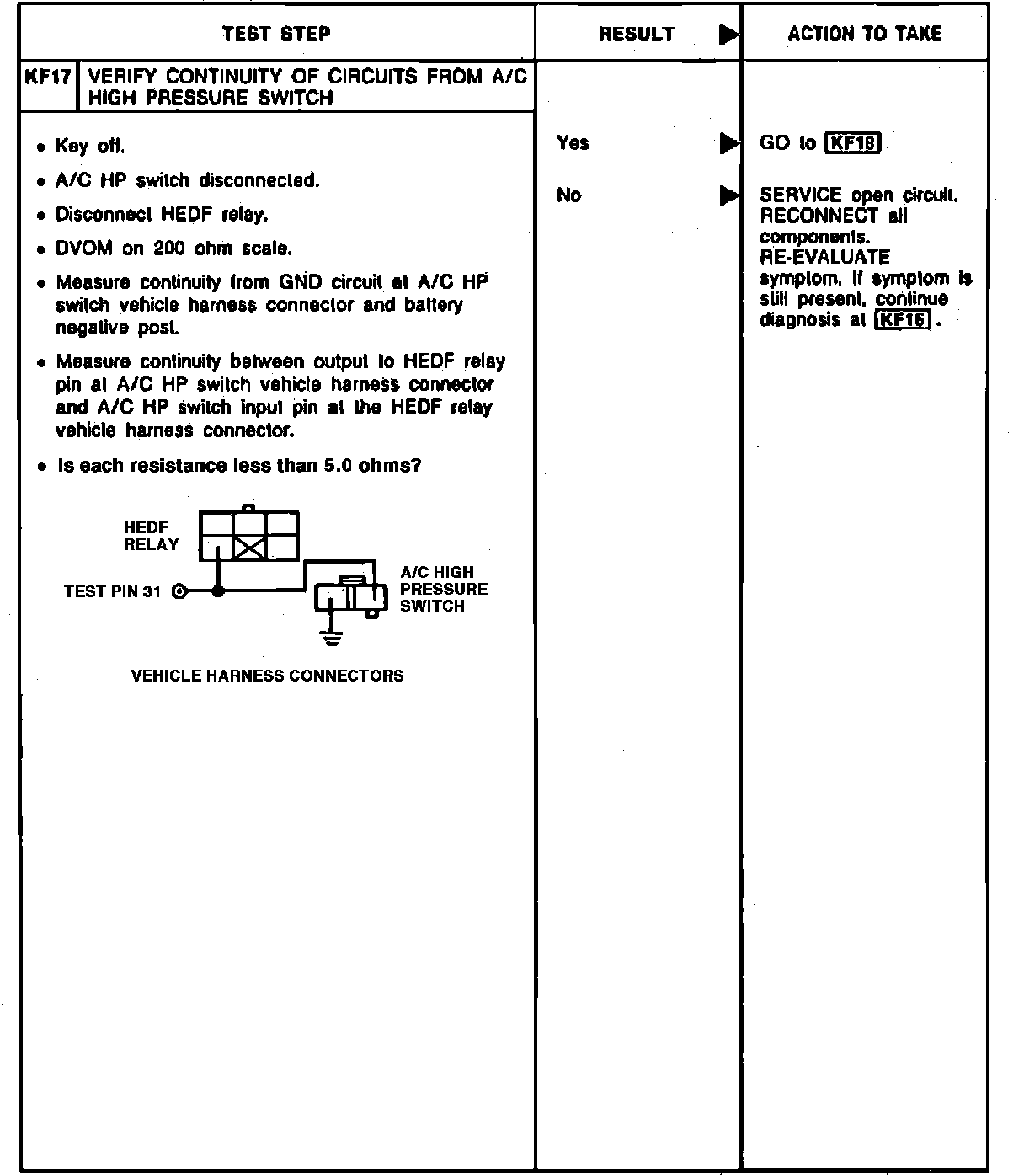

Fig. 5h Fan Pinpoint Test KF17:
