Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> JBL With CD Player

JBL With CD Player

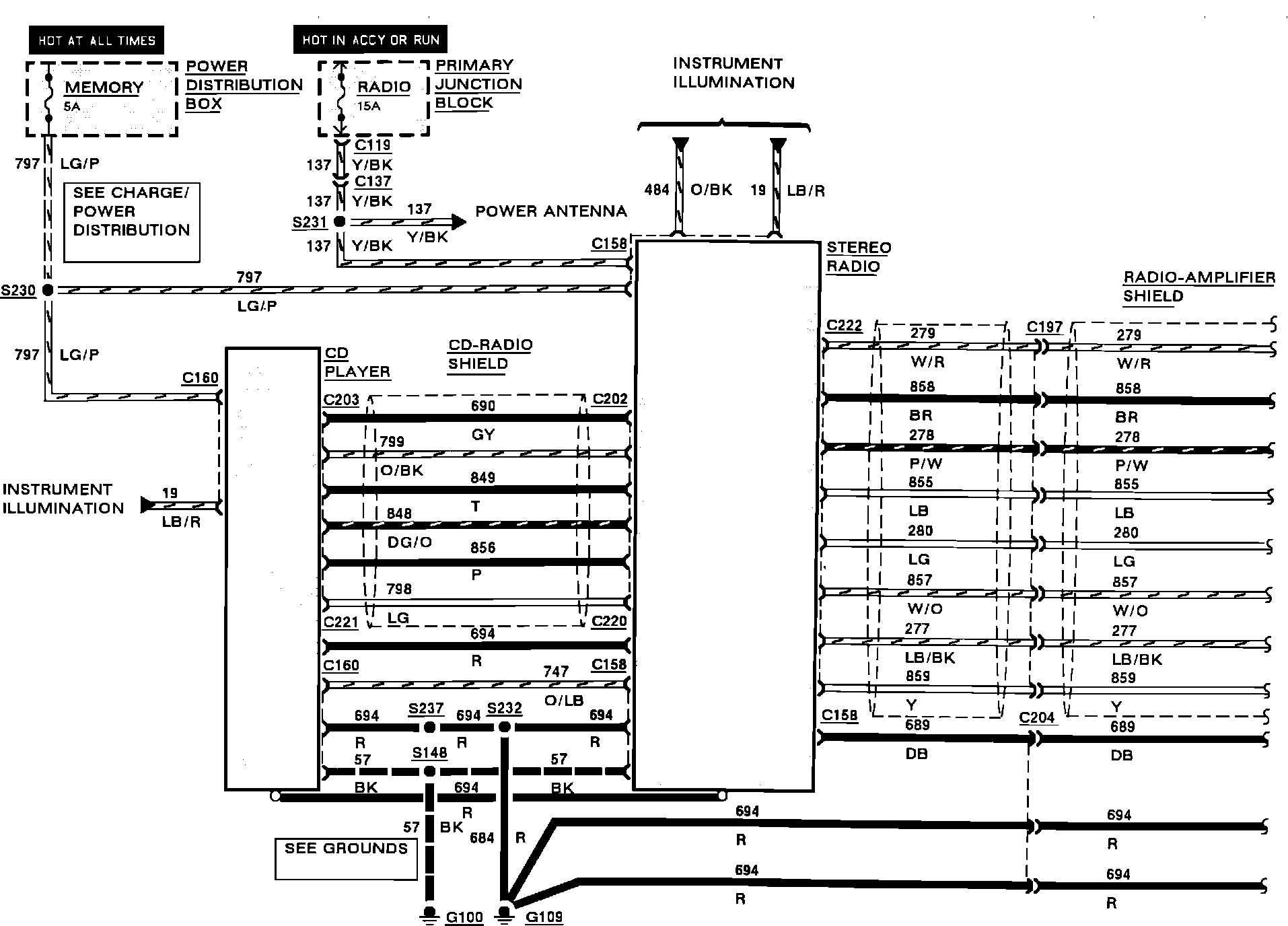

Radio. JBL w/CD Player:



Radio. JBL w/CD Player:
