Headlamp Control Module
>>

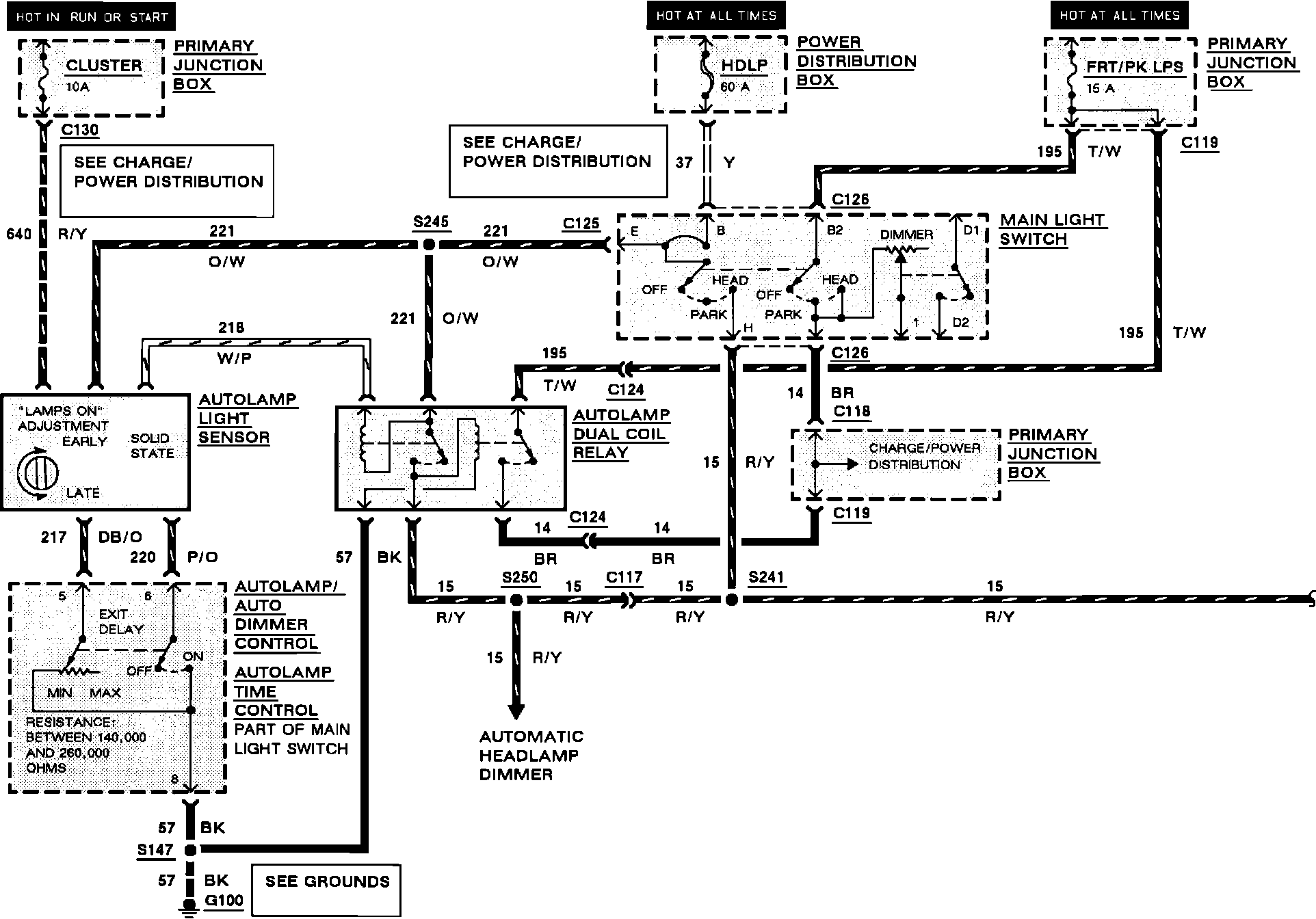

With Automatic Lamps & Delayed Exit System Wiring Circuit
With Automatic Lamps & Delayed Exit System Wiring Circuit

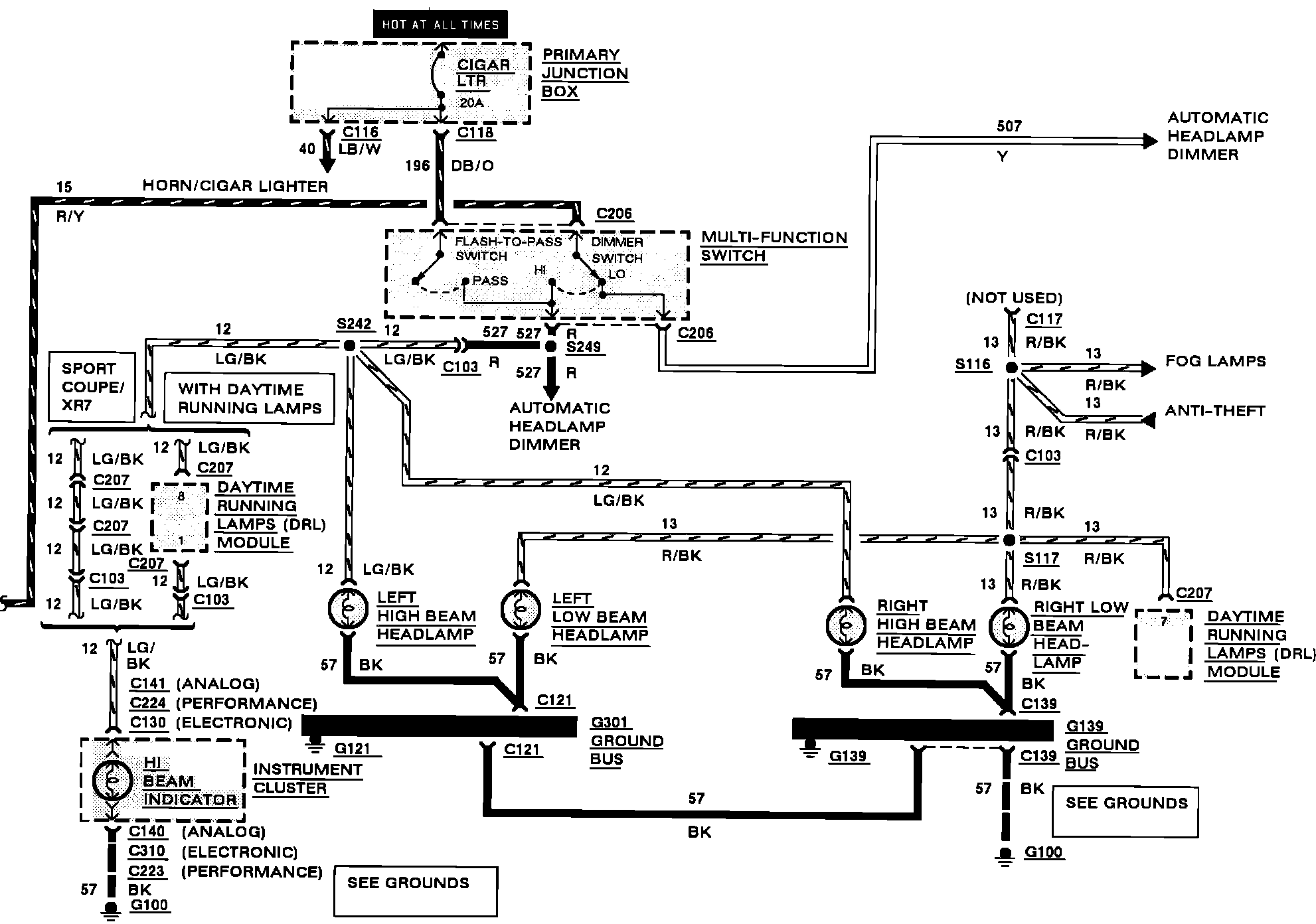

Headlamps. With Autolamp & Delayed Exit:
Headlamps. With Autolamp & Delayed Exit:
