Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Performance >> Part 5 of 5

Part 5 of 5

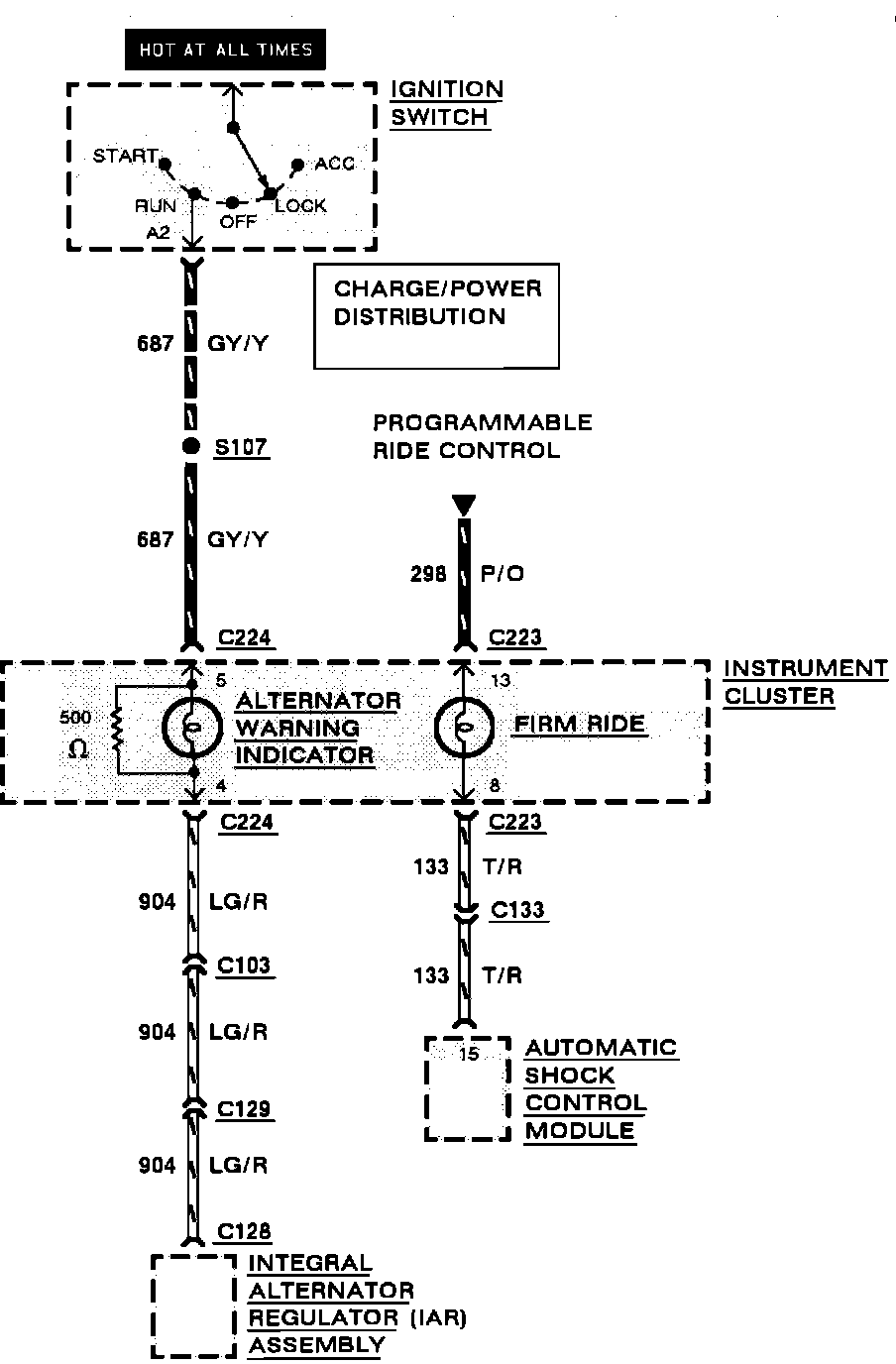

Instrument Cluster. Performance:
