Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Less Electronic Cluster

Less Electronic Cluster

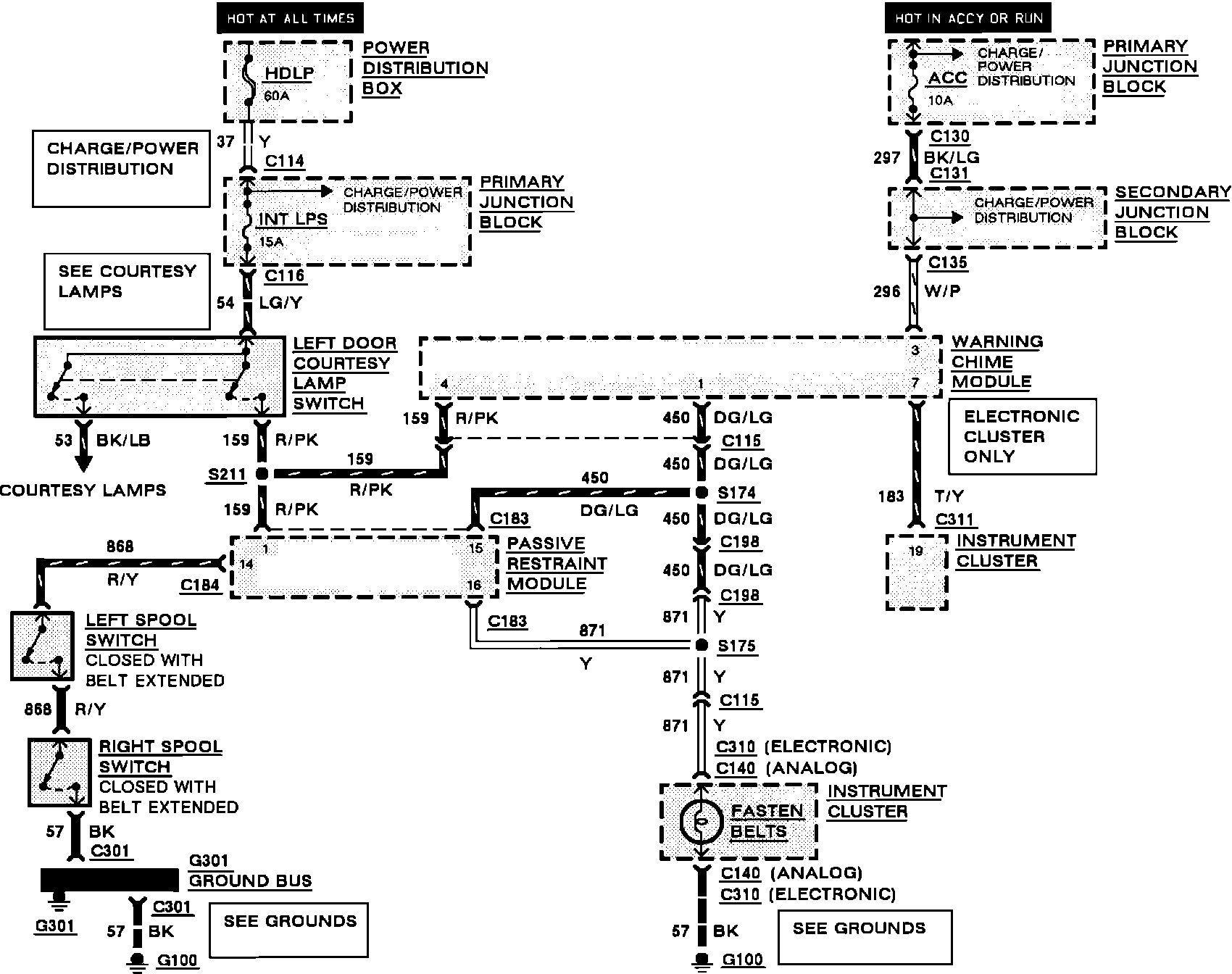

Warning Chime. Analog & Electronic Cluster:

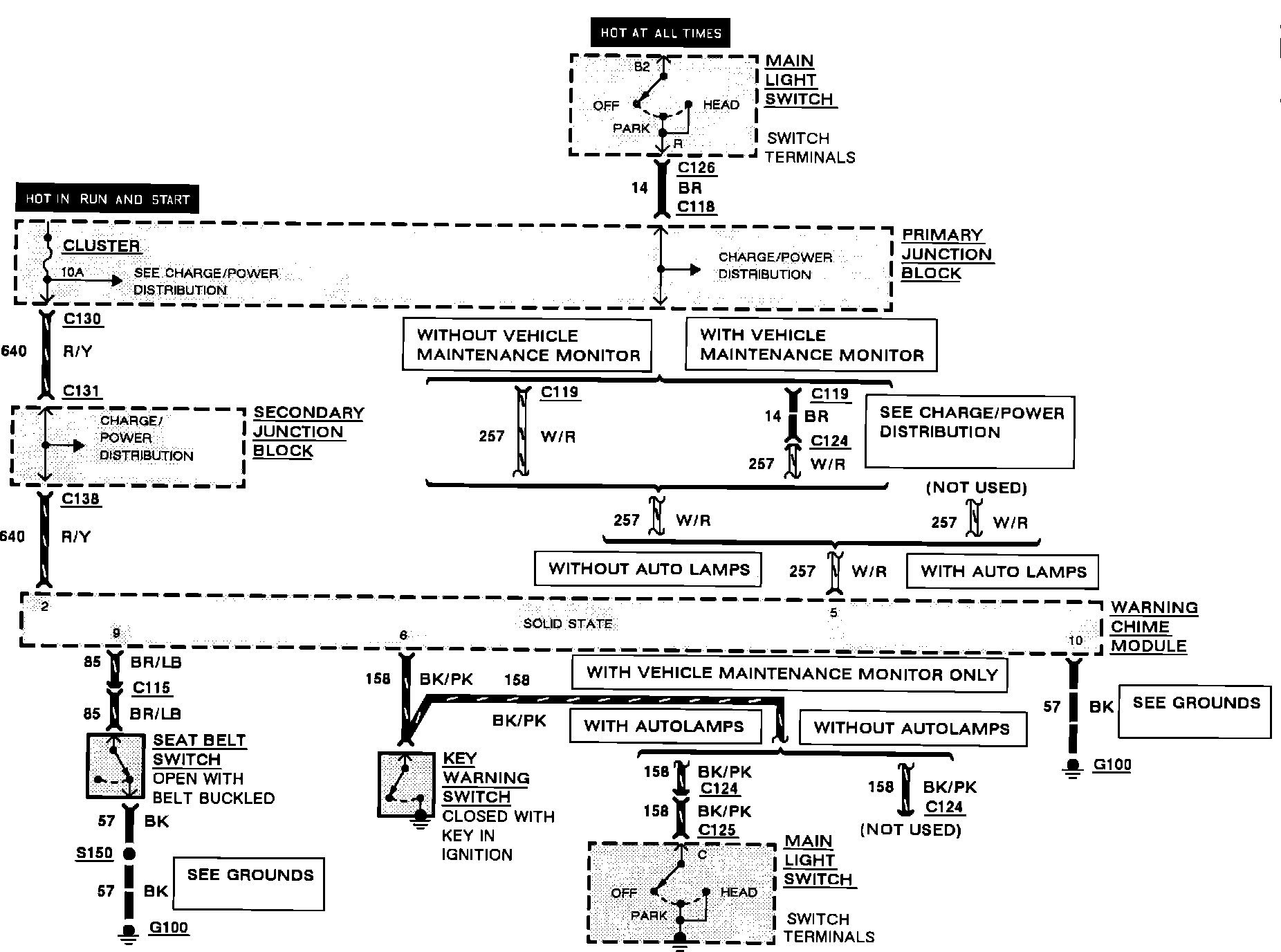

Warning Chime. Analog & Electronic Cluster:
