Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
J Poor Tracking During ABS Function
>>
J1 to J2
J1 to J2

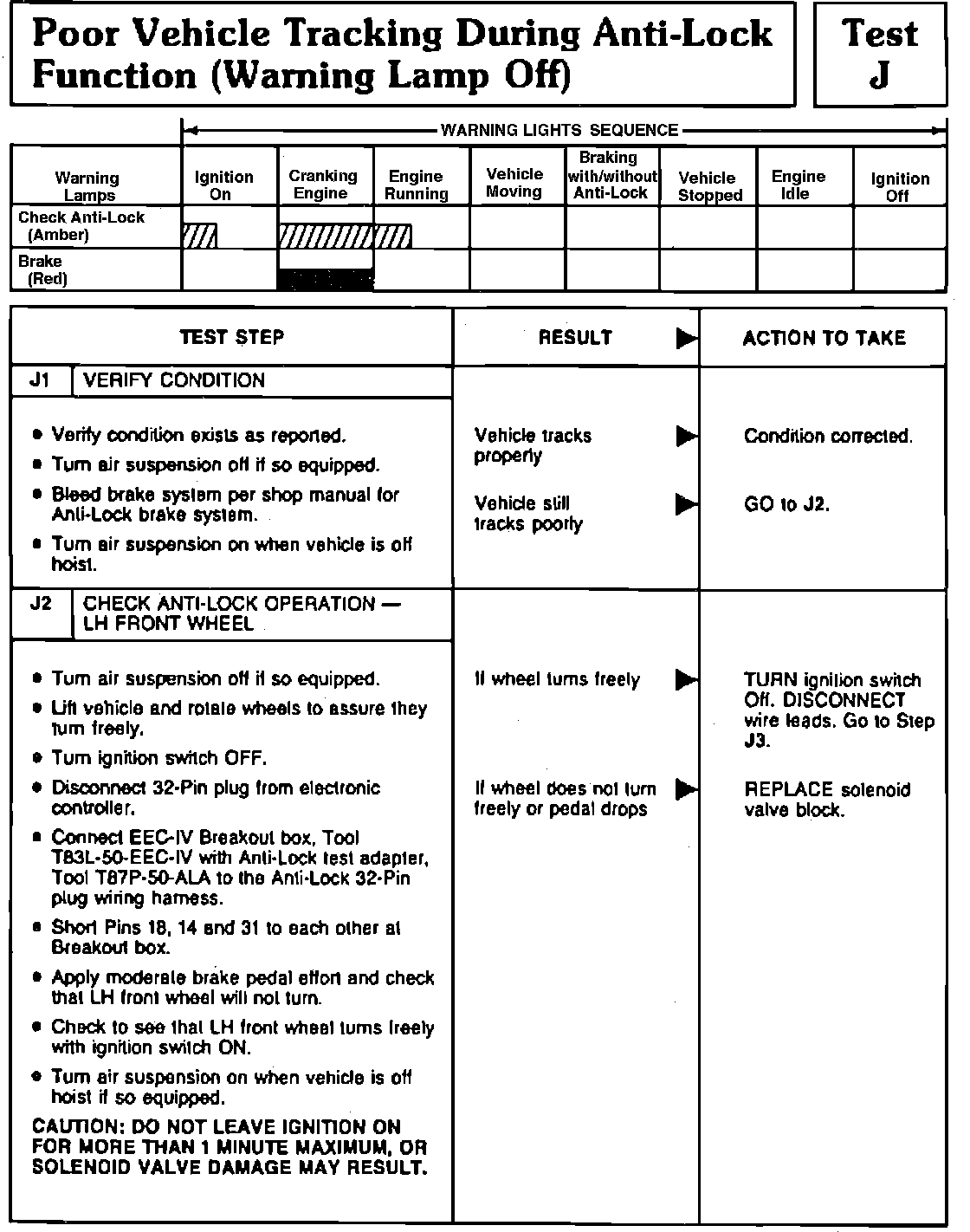

Fig. 31 Test J, Poor Vehicle Tracking During ABS Function, Warning Lamp Off (Part 1 Of 2):
