Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> FF DTC 61 Warning Circuit Diagnosis >> FF2D

FF2D

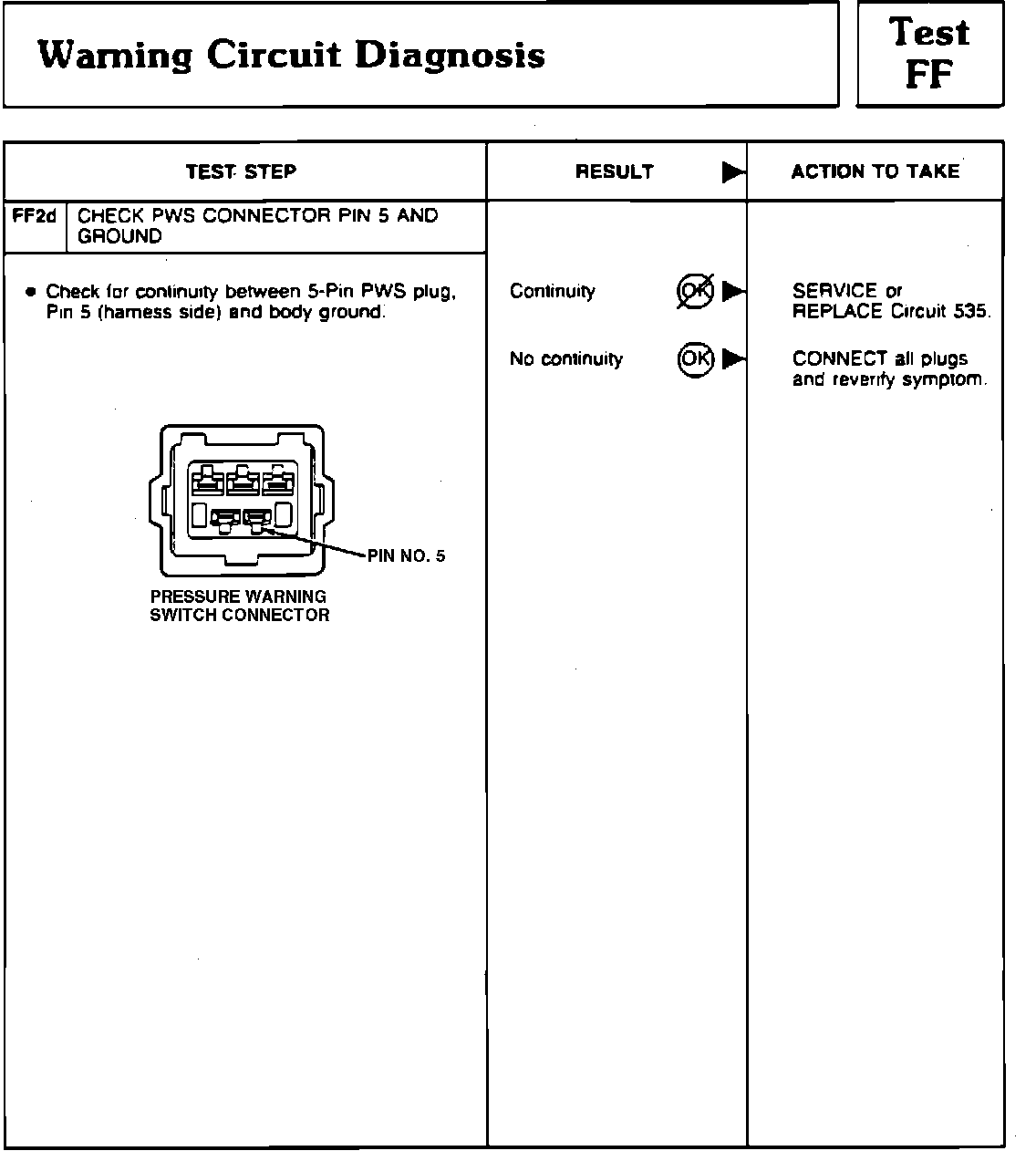

Fig. 17 Test FF, Warning Circuit Diagnosis (Part 6 Of 6):
