D Antilock Lamp & Brake Lamp On or Pump Runs 60 Seconds
>>
D1A, D1B
D1A, D1B

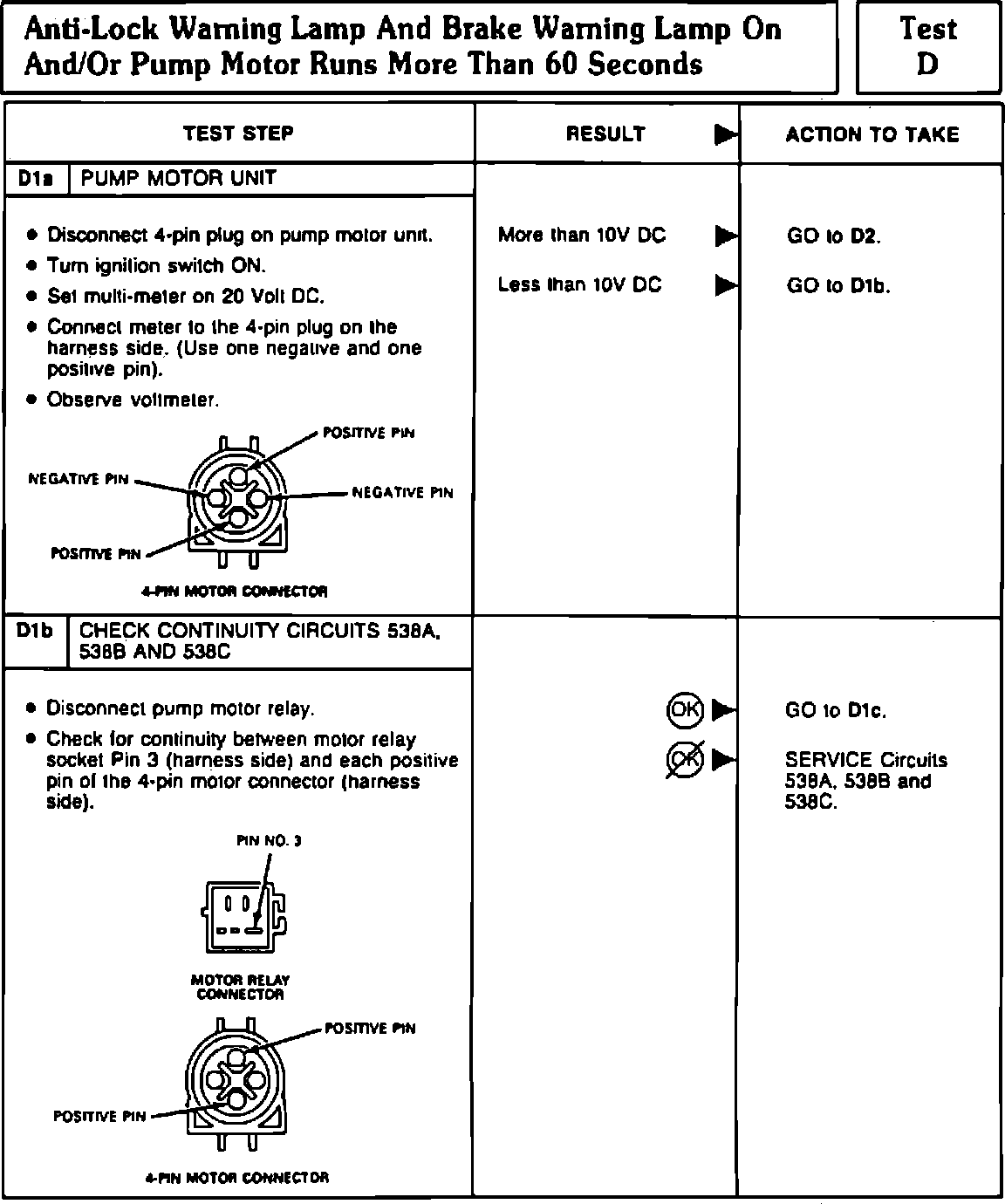

Fig. 26 Test D, Warning Lamp & Brake Warning Lamp On and/Or Pump Motor Runs More Than 60 Seconds (Part 2 Of 10):
